Carlisle SynTecHD 14-10 Fastener

Carlisle SynTec Heavy-duty threaded fastener (Roofing Fasteners). Model HD 14-10. Designed for securing membranes, insulation, and PS RUSS strips; Minimum embedment depth is 1 inch (25.4 mm); Drill hole diameter is 3/16-inch (5 mm) ANSI standard; Available in lengths from 2 inches to 20 inches. material: Heavy-duty #14 wire

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHD-14-10-Fastener.pdfData sheet

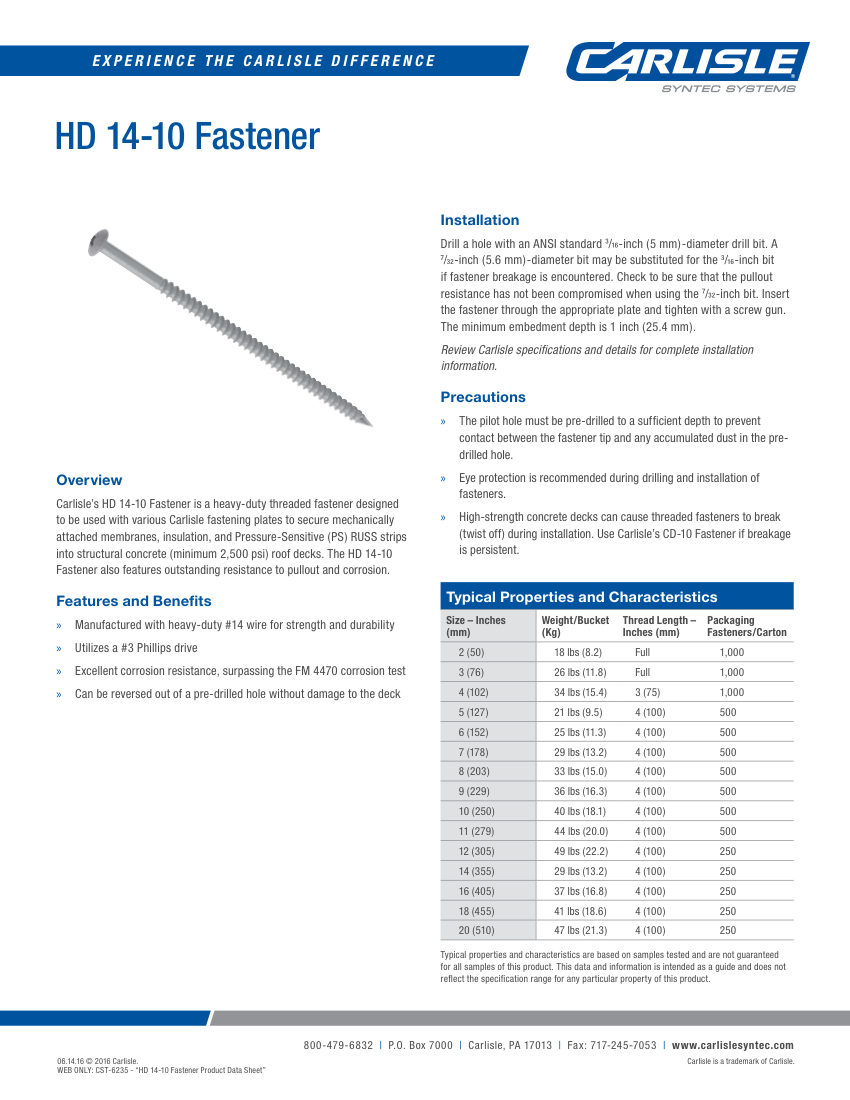

Carlisle SynTec HD 14-10 Fastener cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
HD 14-10 Fastener
Product type
Roofing
MasterFormat
07 50 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHD 14-10 Fastener
DescriptionCarlisle SynTec Heavy-duty threaded fastener (Roofing Fasteners). Model HD 14-10. Designed for securing membranes, insulation, and PS RUSS strips; Minimum embedment depth is 1 inch (25.4 mm); Drill hole diameter is 3/16-inch (5 mm) ANSI standard; Available in lengths from 2 inches to 20 inches. material: Heavy-duty #14 wire
Connection size#3 Phillips drive
End connectionThreaded
MountingStructural concrete (minimum 2,500 psi)
DimensionsLengths 2 to 20 inches (50 to 510 mm)
ComplianceFM 4470 corrosion test.
