Carlisle SynTecHP-X Fastener
Carlisle SynTec Roofing Fastener (Roofing Fasteners). Model HP-X. Oversized heavy shank and #15 thread diameter; Miniature drill point for quick penetration; Deep buttress threads for pull-out resistance; Compatible with 20-gauge and 22-gauge steel decks. material: Steel (CR-10 Coating)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carlisle SynTec
- Catalog no.
- HP-X Fastener
- Product type
- Roofing
- MasterFormat
- 07 50 00

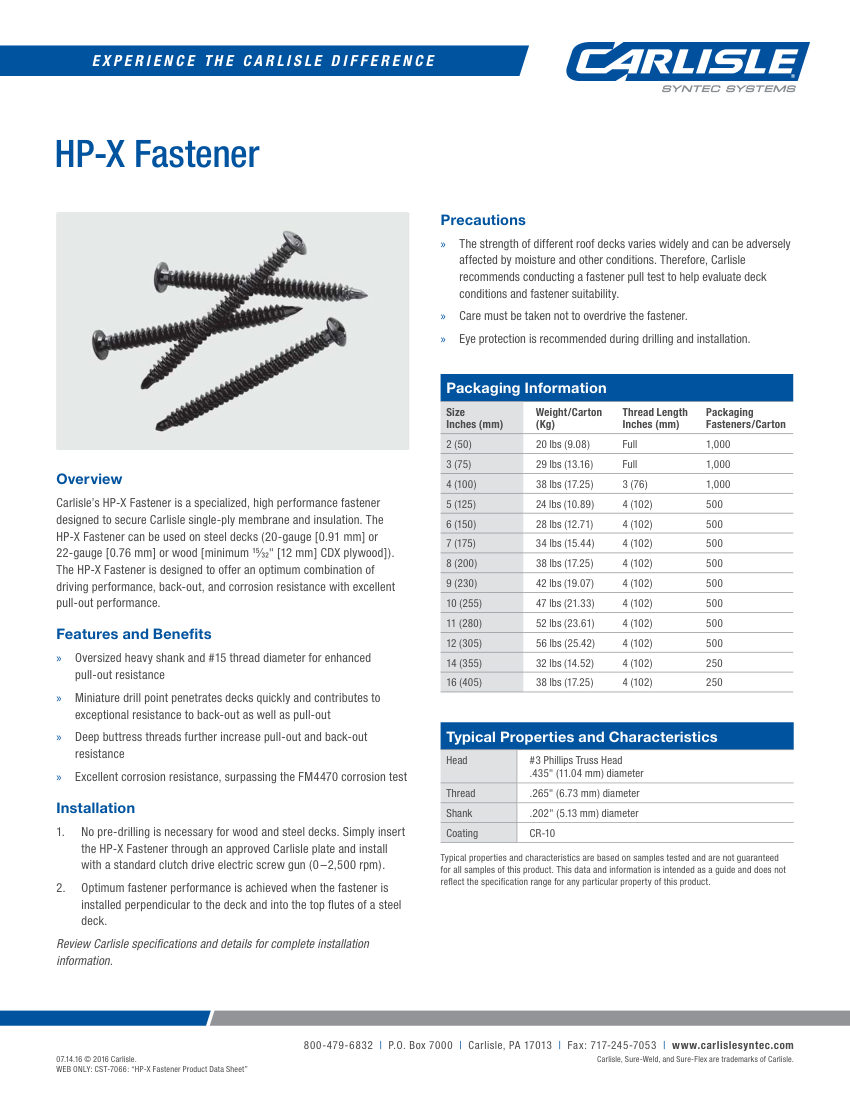

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | HP-X Fastener |
|---|---|
| Description | Carlisle SynTec Roofing Fastener (Roofing Fasteners). Model HP-X. Oversized heavy shank and #15 thread diameter; Miniature drill point for quick penetration; Deep buttress threads for pull-out resistance; Compatible with 20-gauge and 22-gauge steel decks. material: Steel (CR-10 Coating) |
| Connection size | 2-16 inches (50-405 mm) |
| End connection | #3 Phillips Truss Head |
| Finish | CR-10 |
| Mounting | Screw-in |
| Dimensions | Head: 0.435" (11.04 mm) dia |
| Thread | 0.265" (6.73 mm) dia |
| Shank | 0.202" (5.13 mm) dia. |
