Carlisle SynTecHP-X Fasteners and PIRANHA Plates
Carlisle SynTec Roofing Fastener and Plate System (Roofing Fasteners). Model HP-X. 12 threads per inch; 710 lbf pull-out value on 22-ga steel deck; 375 lbf pull-out value on 15/32" CDX plywood; Minimum penetration 3/4" (steel) or 1" (wood). material: Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carlisle SynTec
- Catalog no.
- HP-X Fasteners and PIRANHA Plates
- Product type
- Roofing
- MasterFormat
- 07 50 00

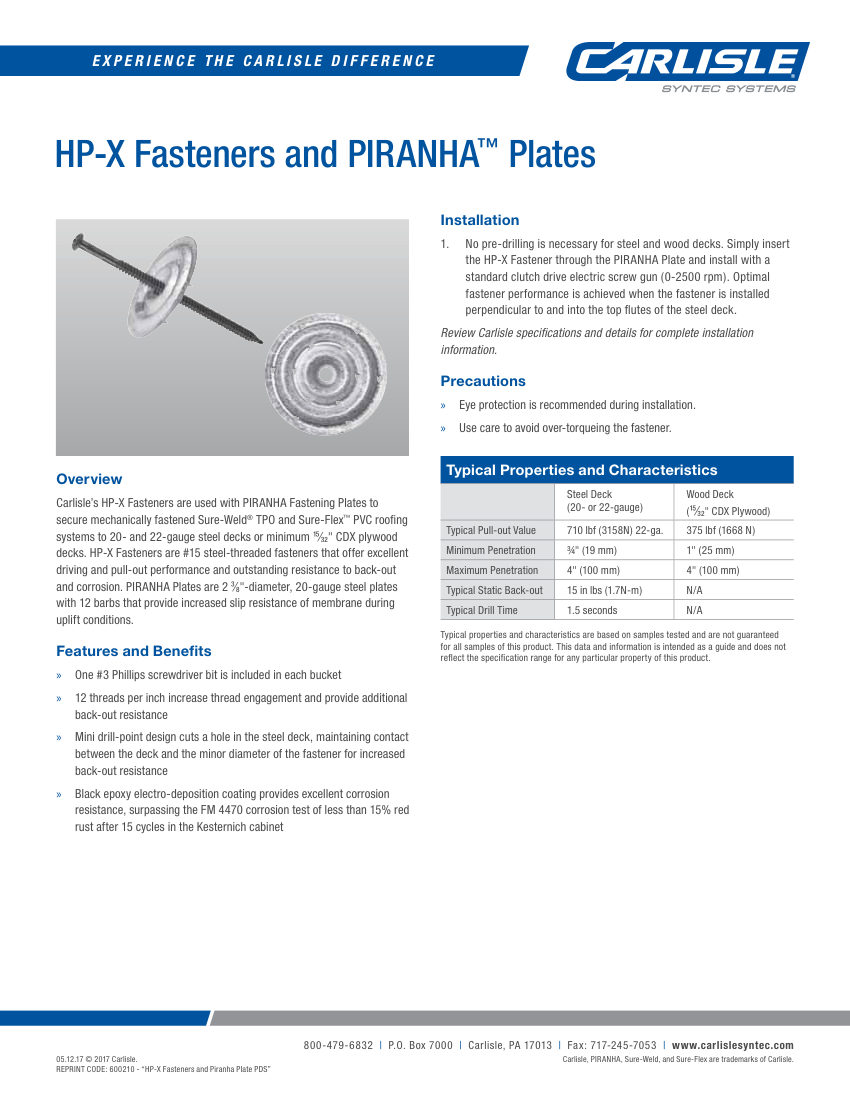

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | HP-X Fasteners and PIRANHA Plates |
|---|---|
| Description | Carlisle SynTec Roofing Fastener and Plate System (Roofing Fasteners). Model HP-X. 12 threads per inch; 710 lbf pull-out value on 22-ga steel deck; 375 lbf pull-out value on 15/32" CDX plywood; Minimum penetration 3/4" (steel) or 1" (wood). material: Steel |
| Connection size | #15 |
| End connection | Phillips |
| Finish | Black epoxy electro-deposition coating |
| Mounting | Mechanical |
| Dimensions | 2 3/8" diameter plate. |
