Carlisle SynTecHP-XTRA Fasteners and PIRANHA XTRA Plates

Carlisle SynTec Mechanical Roofing Fastener and Seam Plate (Roofing Fasteners). Model HP-XTRA / PIRANHA XTRA. Typical pullout value of 900 lbf (4000N); Minimum penetration of 1 inch (25 mm); Maximum penetration of 4 inches (100 mm); Typical static backout of 25 in. lbs (2.8N-m). material: Steel (22-gauge fastener, 20-gauge plate)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHP-XTRA-Fasteners-and-PIRANHA-XTRA-Plates.pdfData sheet

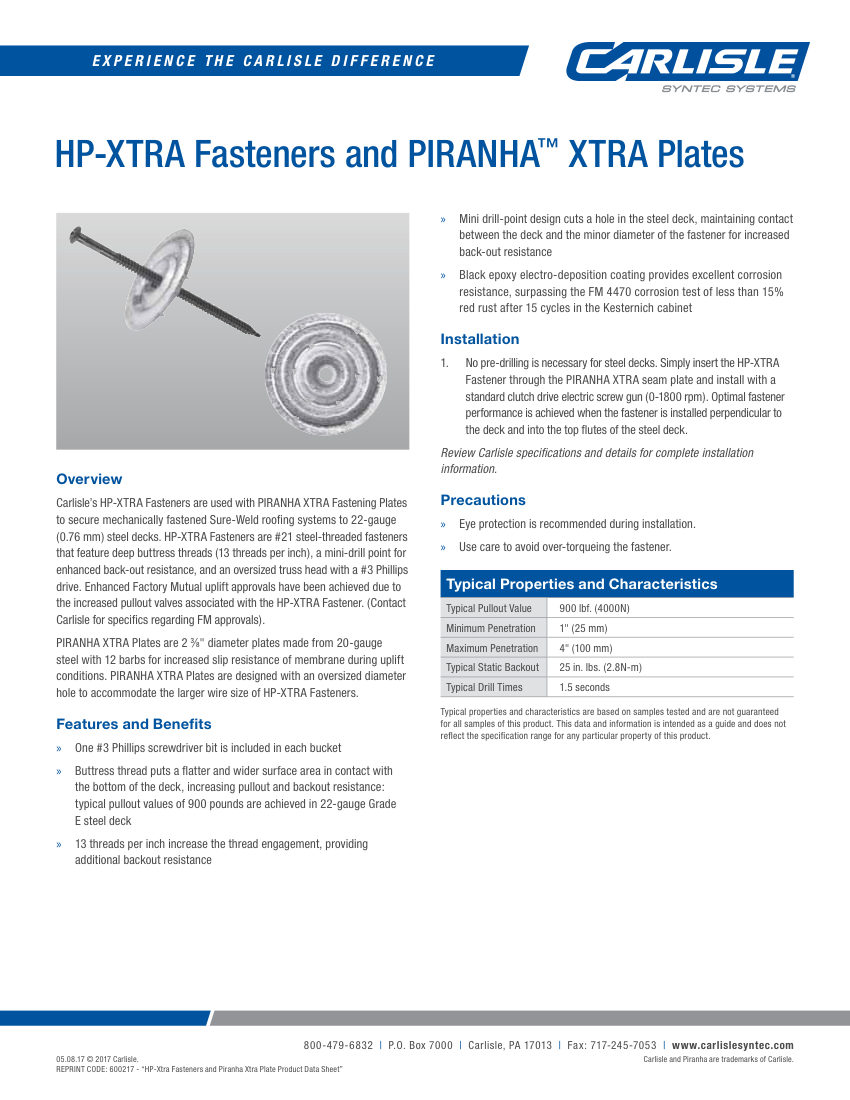

Carlisle SynTec HP-XTRA Fasteners and PIRANHA XTRA Plates cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
HP-XTRA Fasteners and PIRANHA XTRA Plates
Product type
Roofing
MasterFormat
07 50 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHP-XTRA Fasteners and PIRANHA XTRA Plates
DescriptionCarlisle SynTec Mechanical Roofing Fastener and Seam Plate (Roofing Fasteners). Model HP-XTRA / PIRANHA XTRA. Typical pullout value of 900 lbf (4000N); Minimum penetration of 1 inch (25 mm); Maximum penetration of 4 inches (100 mm); Typical static backout of 25 in. lbs (2.8N-m). material: Steel (22-gauge fastener, 20-gauge plate)
Connection size#21 steel-threaded
End connection#3 Phillips drive
FinishBlack epoxy electro-deposition coating
MountingMechanically fastened to 22-gauge steel decks
DimensionsPlate diameter 2 3/8 inches; 13 threads per inch.
