DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

Carlisle SynTecInsulBase RapidLock RL Polyiso Insulation PDSInsulBase RapidLock RL Polyiso Insulation

Carlisle SynTec Rigid Polyiso Insulation Panel (Roofing Insulation). Model InsulBase RapidLock RL. R-Value of 5.7 per inch; Weight of 0.397 lbs/sq. ft.; Water absorption less than 1% volume; Moisture vapor permeance less than 1 perm. material: Polyisocyanurate foam core with fiber-reinforced facers (GRF)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFInsulBase-RapidLock-RL-Polyiso-Insulation.pdfData sheet

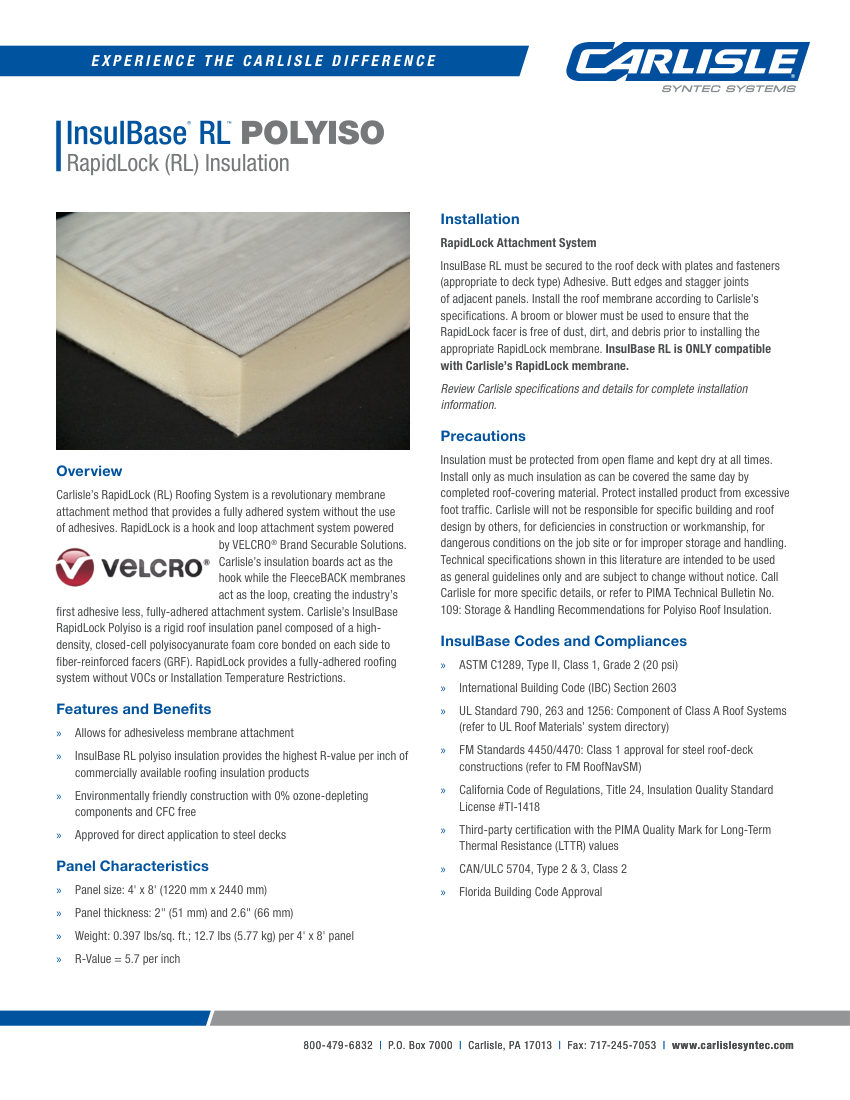

Carlisle SynTec InsulBase RapidLock RL Polyiso Insulation cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
InsulBase RapidLock RL Polyiso Insulation
Product type
Roofing
MasterFormat
07 22 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberInsulBase RapidLock RL Polyiso Insulation
DescriptionCarlisle SynTec Rigid Polyiso Insulation Panel (Roofing Insulation). Model InsulBase RapidLock RL. R-Value of 5.7 per inch; Weight of 0.397 lbs/sq. ft.; Water absorption less than 1% volume; Moisture vapor permeance less than 1 perm. material: Polyisocyanurate foam core with fiber-reinforced facers (GRF)
End connectionRapidLock hook and loop attachment system
Pressure Rating20 psi compressive strength
FinishFiber-reinforced facers
MountingAdhesiveless, fully adhered to roof deck
Dimensions4' x 8' (1220 mm x 2440 mm); 2" (51 mm) and 2.6" (66 mm) thickness.
