DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

Carlisle SynTecInsulFast Fasteners

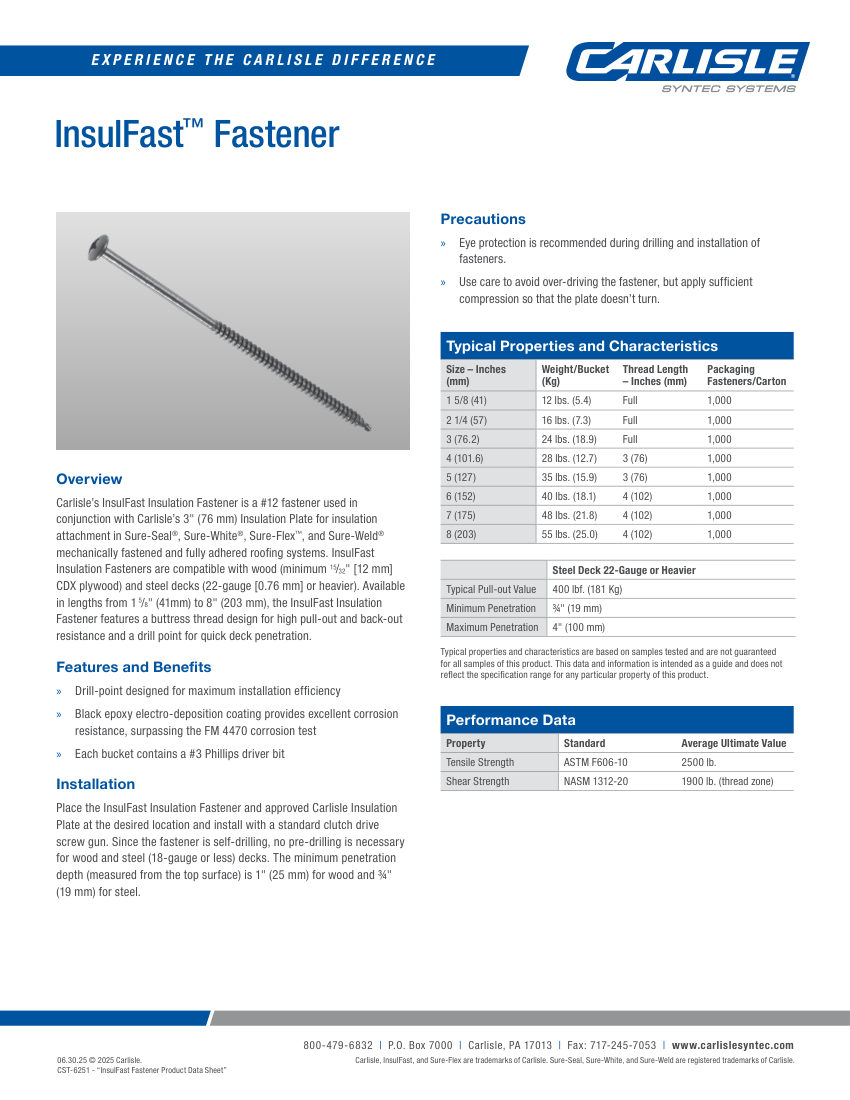

Name: Carlisle SynTec InsulFast Fasteners
Brand: Carlisle SynTec
SKU: InsulFast Fasteners

Carlisle SynTec Insulation Fastener (Roofing Fasteners). Model InsulFast. Tensile Strength: 2500 lb (ASTM F606-10)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	InsulFast Fasteners
Description	Carlisle SynTec Insulation Fastener (Roofing Fasteners). Model InsulFast. Tensile Strength: 2500 lb (ASTM F606-10)
Shear Strength	1900 lb (NASM 1312-20); Typical Pull-out Value: 400 lbf (181 Kg)
Minimum Penetration	3/4" (19 mm) for steel, 1" (25 mm) for wood. material: Steel
Connection size	1 5/8" to 8" (41-203 mm)
End connection	Buttress thread, drill point
Finish	Black epoxy electro-deposition coating
Mounting	Self-drilling, clutch drive screw gun
Dimensions	Lengths: 1 5/8" (41 mm) to 8" (203 mm).
