Carlisle SynTecMiraDRAIN 9800

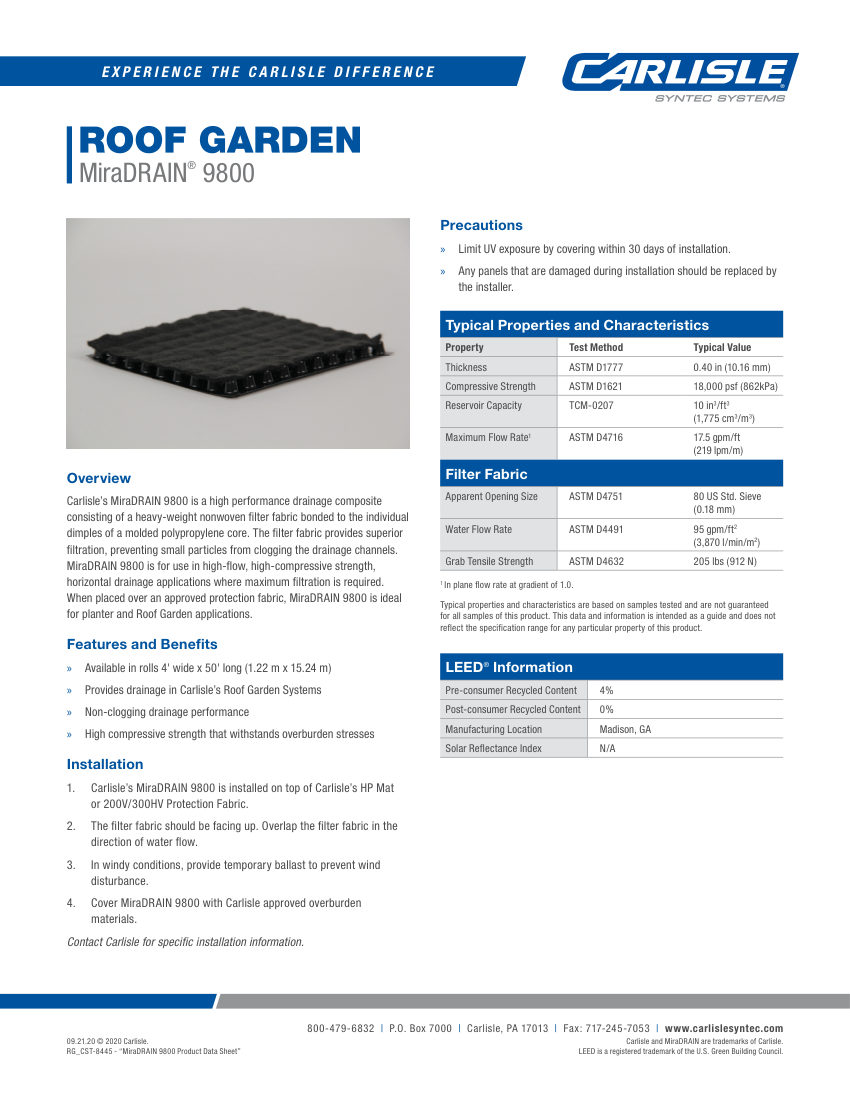

Name: Carlisle SynTec MiraDRAIN 9800
Brand: Carlisle SynTec
SKU: MiraDRAIN 9800

Carlisle SynTec Drainage Mat (Drainage Composite). Model MiraDRAIN 9800. Thickness: 0.40 in (10.16 mm)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	MiraDRAIN 9800
Description	Carlisle SynTec Drainage Mat (Drainage Composite). Model MiraDRAIN 9800. Thickness: 0.40 in (10.16 mm)
Compressive Strength	18,000 psf (862 kPa)
Reservoir Capacity	10 in³/ft³ (1,775 cm³/m³); Filter Fabric Apparent Opening Size: 80 US Std. Sieve (0.18 mm). material: Polypropylene core with nonwoven filter fabric
Flow Rate	17.5 gpm/ft (219 lpm/m)
Mounting	Horizontal drainage applications
Dimensions	4' wide x 50' long (1.22 m x 15.24 m)
Compliance	LEED Pre-consumer Recycled Content 4%.
