DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

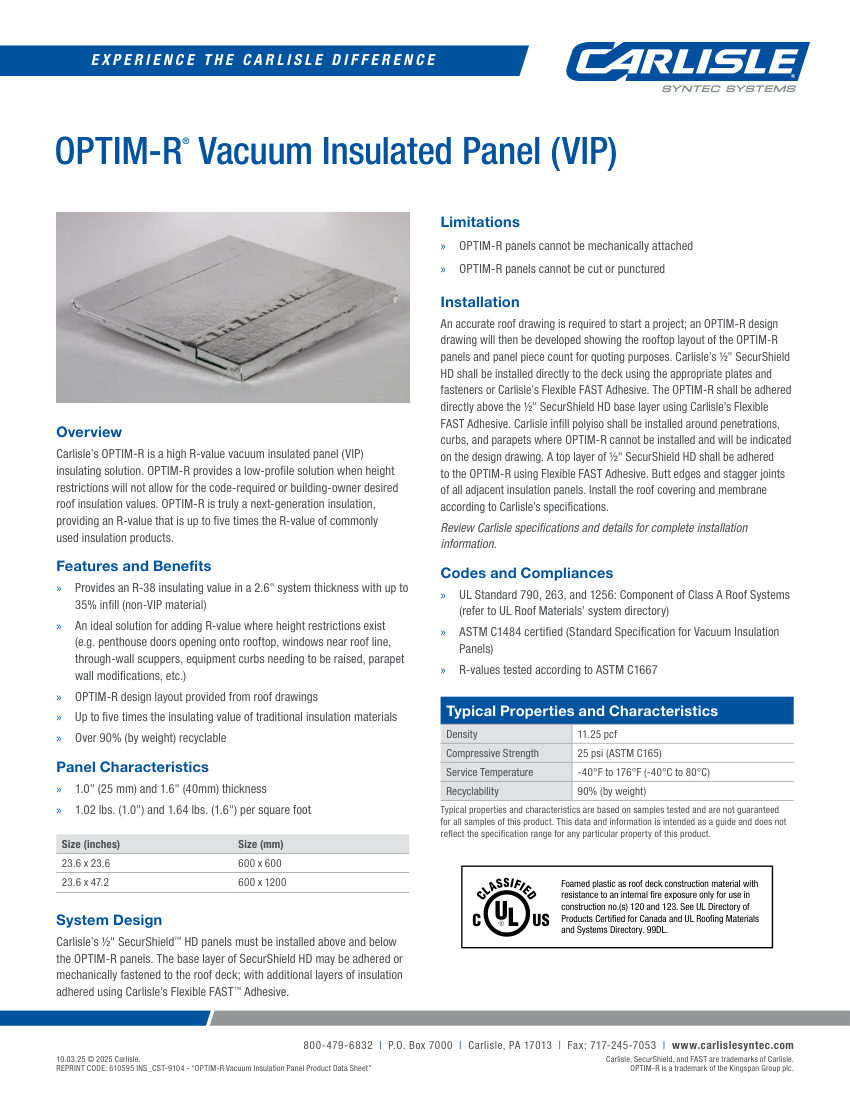

Carlisle SynTecOPTIM-R Vacuum Insulated Panels (VIP)

Name: Carlisle SynTec OPTIM-R Vacuum Insulated Panels (VIP)
Brand: Carlisle SynTec
SKU: OPTIM-R Vacuum Insulated Panels (VIP)

Carlisle SynTec Vacuum Insulated Panel (Roofing Insulation). Model OPTIM-R. R-38 insulating value in 2.6" system thickness

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	OPTIM-R Vacuum Insulated Panels (VIP)
Description	Carlisle SynTec Vacuum Insulated Panel (Roofing Insulation). Model OPTIM-R. R-38 insulating value in 2.6" system thickness
Density	11.25 pcf
Compressive Strength	25 psi (ASTM C165)
Service Temperature	-40°F to 176°F (-40°C to 80°C). material: Vacuum Insulated Panel (VIP)
Mounting	Adhered using Carlisle's Flexible FAST Adhesive
Dimensions	1.0" (25 mm) and 1.6" (40mm) thickness; 23.6 x 23.6 in (600 x 600 mm) and 23.6 x 47.2 in (600 x 1200 mm)
Compliance	UL 790, 263, 1256; ASTM C1484; ASTM C1667.
