Carlisle SynTecPlaza Paver System Accessories- MRP Supports

Carlisle SynTec Adjustable Pedestal Supports (Plaza Paver System Accessories). Model MRP Supports. Central Compression Loading Limit Resistance: 19.55 KN; Eccentric Compression Loading Limit Resistance: 15.23 KN

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPlaza-Paver-System-Accessories--MRP-Supports.pdfData sheet

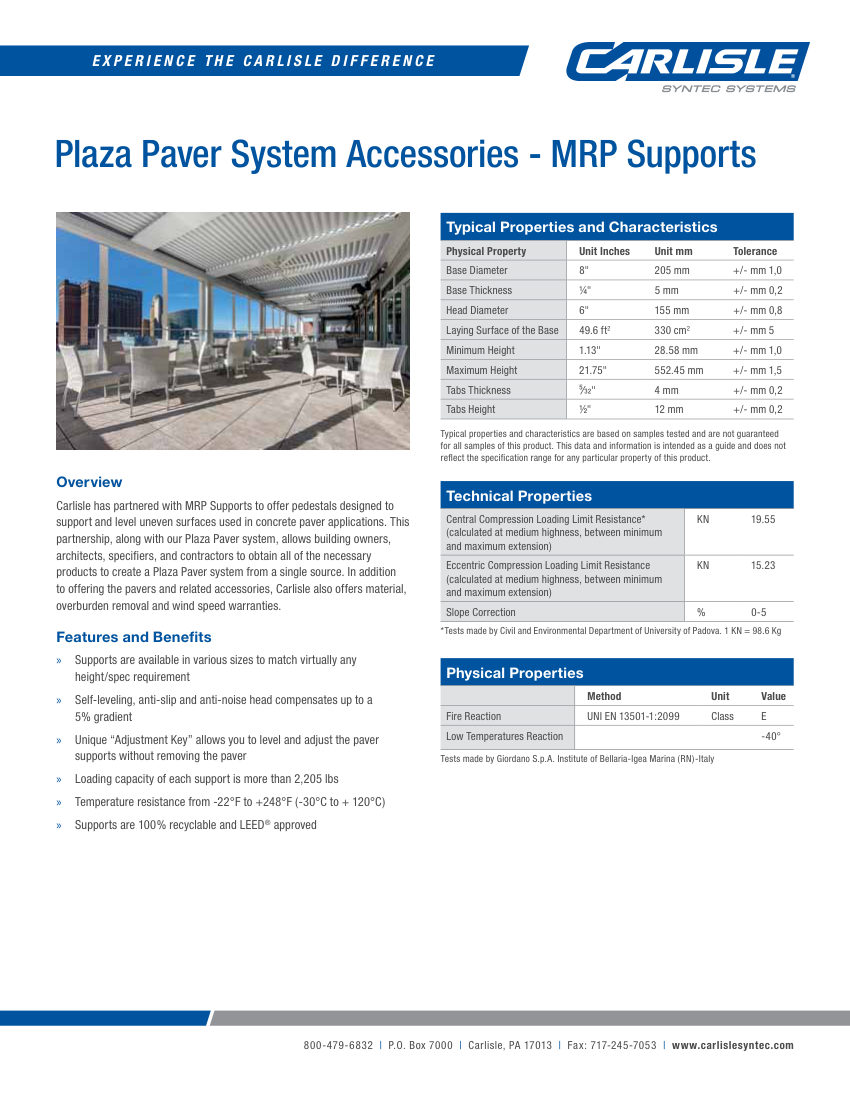

Carlisle SynTec Plaza Paver System Accessories- MRP Supports cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
Plaza Paver System Accessories- MRP Supports
Product type
Roofing
MasterFormat
07 50 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPlaza Paver System Accessories- MRP Supports
DescriptionCarlisle SynTec Adjustable Pedestal Supports (Plaza Paver System Accessories). Model MRP Supports. Central Compression Loading Limit Resistance: 19.55 KN; Eccentric Compression Loading Limit Resistance: 15.23 KN
Slope Correction0-5%
Temperature Resistance-22°F to +248°F (-30°C to +120°C). material: EPDM rubber
MountingSelf-leveling, anti-slip, anti-noise head
DimensionsBase Diameter 8" (205 mm), Base Thickness 1/4" (5 mm), Head Diameter 6" (155 mm), Min Height 1.13" (28.58 mm), Max Height 21.75" (552.45 mm)
ComplianceLEED approved, Fire Reaction Class E (UNI EN 13501-1:2099).
