DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

Carlisle SynTecPressure-Sensitive Inside/Outside Corners

Carlisle SynTec Pressure-Sensitive Inside/Outside Corner (Roofing Flashing). Total thickness of 90 mils (2.25 mm); Packaged 20 per carton; Pre-cut to eliminate cutting time; Compatible with Sure-Seal and Sure-White EPDM systems. material: 60-mil uncured Elastoform Flashing laminated to 30-mil fully cured PS adhesive

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPressure-Sensitive-Inside-Outside-Corners.pdfData sheet

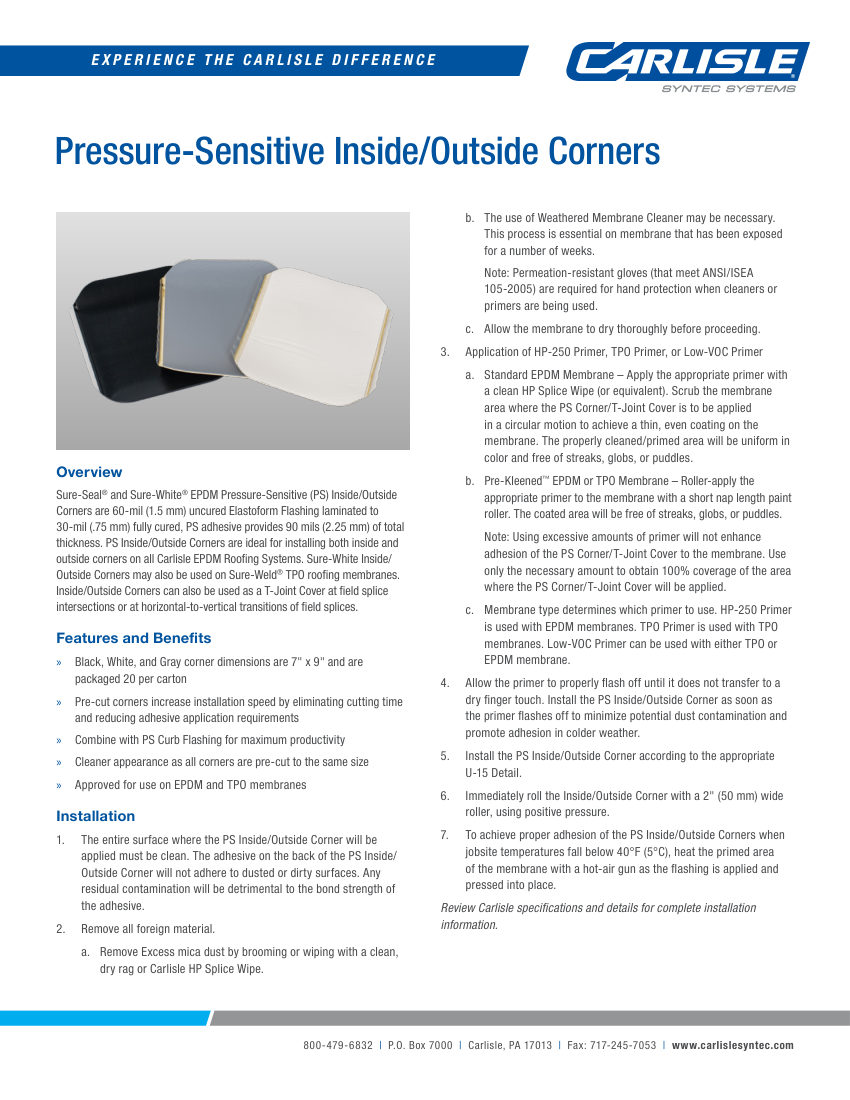

Carlisle SynTec Pressure-Sensitive Inside/Outside Corners cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
Pressure-Sensitive Inside/Outside Corners
Product type
Roofing
MasterFormat
07 50 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPressure-Sensitive Inside/Outside Corners
DescriptionCarlisle SynTec Pressure-Sensitive Inside/Outside Corner (Roofing Flashing). Total thickness of 90 mils (2.25 mm); Packaged 20 per carton; Pre-cut to eliminate cutting time; Compatible with Sure-Seal and Sure-White EPDM systems. material: 60-mil uncured Elastoform Flashing laminated to 30-mil fully cured PS adhesive
FinishBlack, White, or Gray
MountingPressure-Sensitive Adhesive
Dimensions7" x 9" (175 mm x 225 mm)
ComplianceApproved for use on EPDM and TPO membranes.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
