Carlisle SynTecRoof Garden Aluminum Drain Box

Carlisle SynTec Aluminum Drain Box (Roofing). Model RG_CST-1005. Available in standard heights of 4", 8", and 12"; Designed with slots for maximum drainage; Features a removable lid for maintenance access; Will not rust or corrode. material: 0.125 gauge aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFRoof-Garden-Aluminum-Drain-Box.pdfData sheet

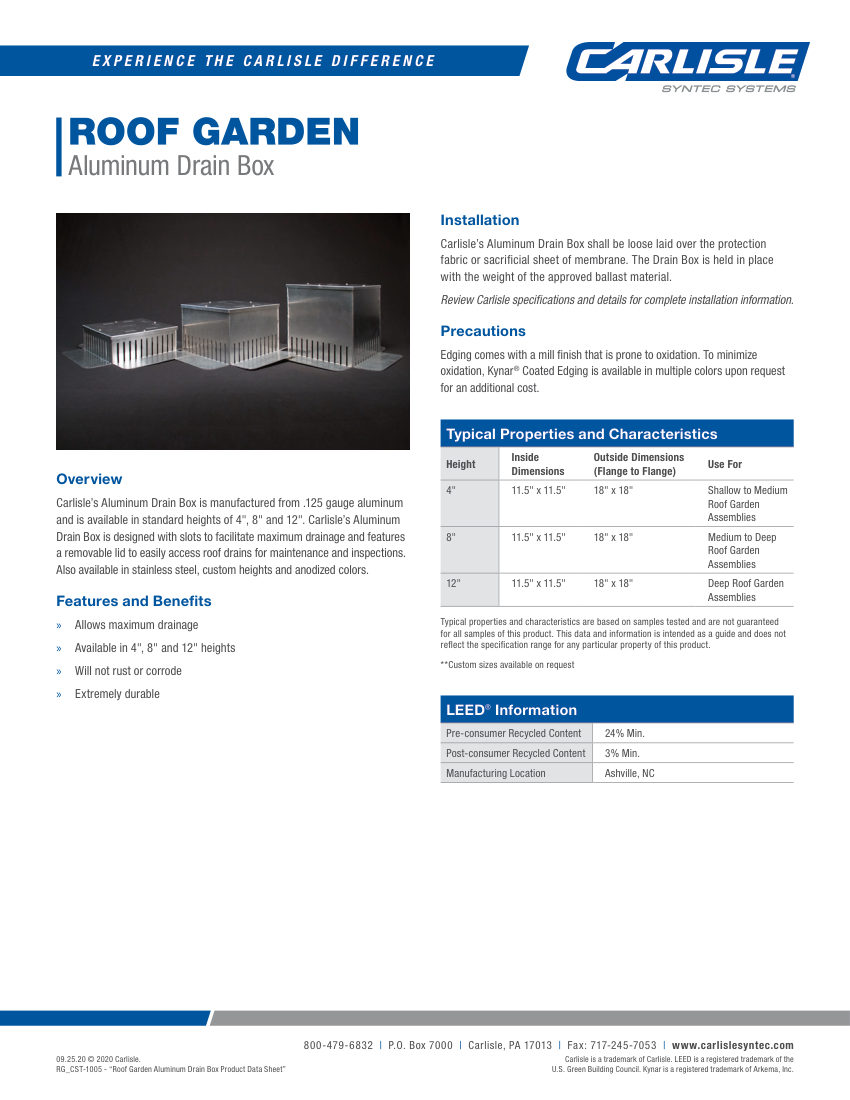

Carlisle SynTec Roof Garden Aluminum Drain Box cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
Roof Garden Aluminum Drain Box
Product type
Roofing
MasterFormat
07 50 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberRoof Garden Aluminum Drain Box
DescriptionCarlisle SynTec Aluminum Drain Box (Roofing). Model RG_CST-1005. Available in standard heights of 4", 8", and 12"; Designed with slots for maximum drainage; Features a removable lid for maintenance access; Will not rust or corrode. material: 0.125 gauge aluminum
FinishMill finish (Kynar coated edging available)
MountingLoose laid over protection fabric, held by ballast weight
DimensionsInside: 11.5" x 11.5"
Outside18" x 18"
Heights4", 8", 12"
ComplianceLEED: 24% Min Pre-consumer Recycled Content, 3% Min Post-consumer Recycled Content.
