Carlisle SynTecSecurShield HD EPS Composite
Carlisle SynTec Composite Insulation Board (Roofing Insulation). Model SecurShield HD EPS Composite. Polyiso cover board thickness: 0.5" with minimum 80 psi compressive strength; EPS compressive strength range: 10-60 psi; R-Value @ 75°F: 6.37 (1.5") to 23.68 (6")
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carlisle SynTec
- Catalog no.
- SecurShield HD EPS Composite
- Product type
- Roofing
- MasterFormat
- 07 22 00

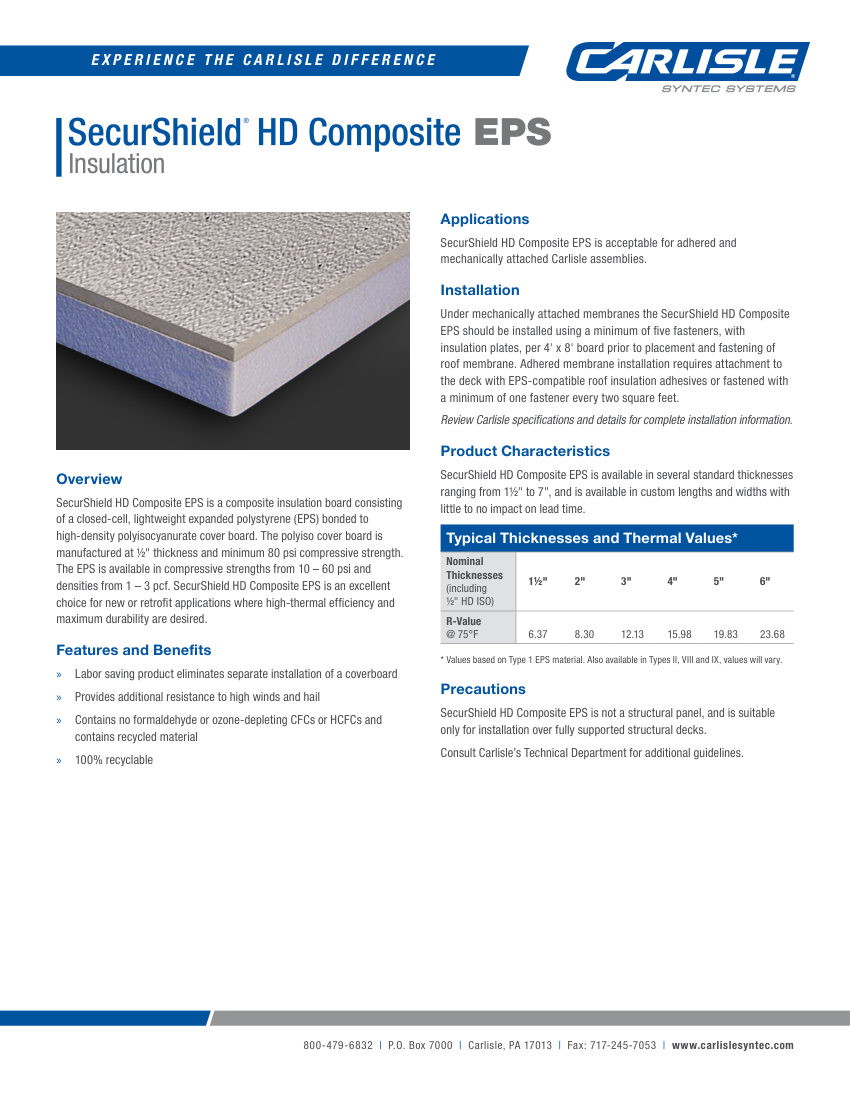

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SecurShield HD EPS Composite |
|---|---|
| Description | Carlisle SynTec Composite Insulation Board (Roofing Insulation). Model SecurShield HD EPS Composite. Polyiso cover board thickness: 0.5" with minimum 80 psi compressive strength; EPS compressive strength range: 10-60 psi; R-Value @ 75°F: 6.37 (1.5") to 23.68 (6") |
| Service temperature | 260°F (126°C) or less. material: Closed-cell EPS bonded to high-density polyisocyanurate cover board |
| Mounting | Adhered or mechanically attached |
| Dimensions | Standard thicknesses 1.5" to 7" (including 0.5" HD ISO); custom lengths and widths available |
| Compliance | ASTM C303, ASTM D1621, ASTM D2126, ASTM C272, ASTM |
