DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

Carlisle SynTecSecurShield NH Polyiso Insulation

Carlisle SynTec Rigid Polyisocyanurate Insulation Panel (Roof Insulation). Model SecurShield NH POLYISO. Zero halogenated flame retardants; HFC- and HCFC-free formulation; Highest R-value per inch of commercially available insulation; 3" thickness qualifies for UL Class A rating. material: Closed cell polyisocyanurate foam core with coated glass facers (CGF)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSecurShield-NH-Polyiso-Insulation.pdfData sheet

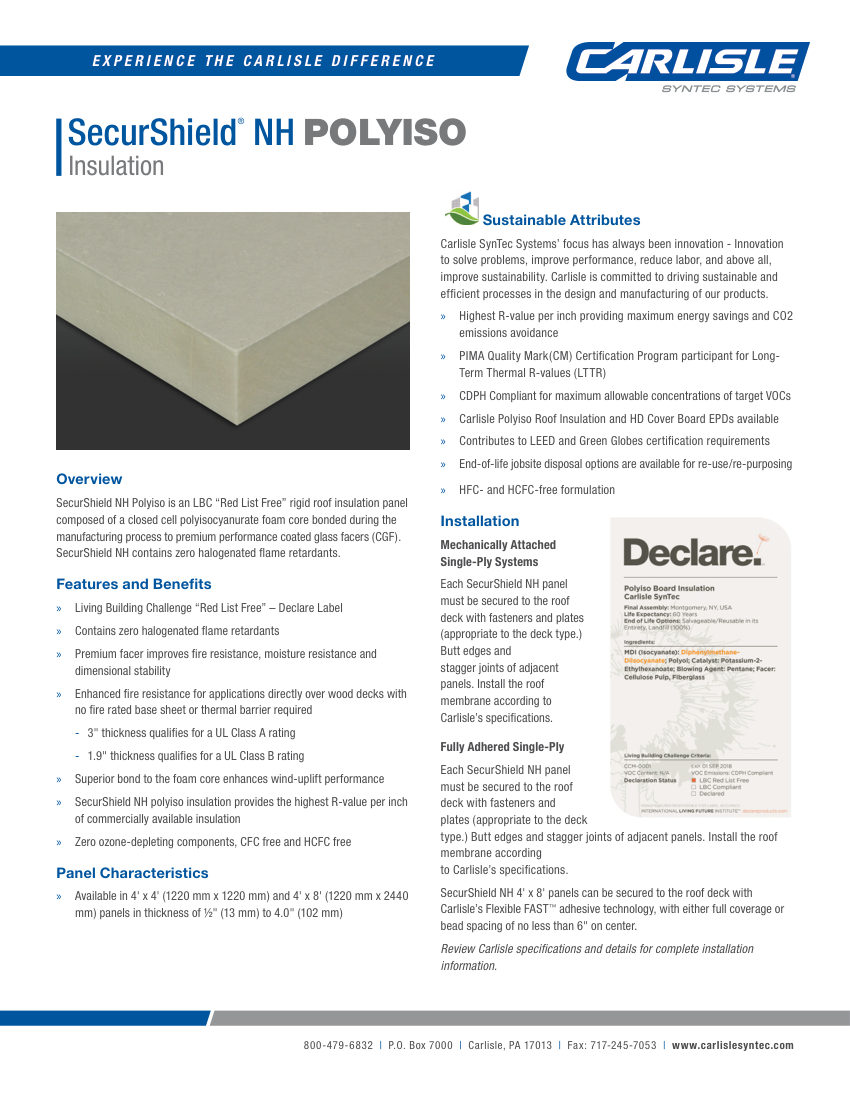

Carlisle SynTec SecurShield NH Polyiso Insulation cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
SecurShield NH Polyiso Insulation
Product type
Roofing
MasterFormat
07 22 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSecurShield NH Polyiso Insulation
DescriptionCarlisle SynTec Rigid Polyisocyanurate Insulation Panel (Roof Insulation). Model SecurShield NH POLYISO. Zero halogenated flame retardants; HFC- and HCFC-free formulation; Highest R-value per inch of commercially available insulation; 3" thickness qualifies for UL Class A rating. material: Closed cell polyisocyanurate foam core with coated glass facers (CGF)
FinishCoated glass facers
MountingMechanically attached or fully adhered
Dimensions4' x 4' (1220 mm x 1220 mm) and 4' x 8' (1220 mm x 2440 mm); Thickness 0.5" to 4.0" (13 mm to 102 mm)
ComplianceLBC Red List Free, CDPH Complian
