Carlisle SynTecSecurShield RapidLock (RL) Polyiso Insulation

Carlisle SynTec Polyisocyanurate Insulation Panel (Roofing Insulation). Model SecurShield RapidLock (RL). R-Value of 5.7 per inch; Weight of 0.397 lbs/sq. ft.; Moisture Vapor Permeance <1 perm; Water Absorption <1% volume. material: Closed-cell polyisocyanurate foam core with coated glass facers (CGF)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSecurShield-RapidLock-RL-Polyiso-Insulation.pdfData sheet

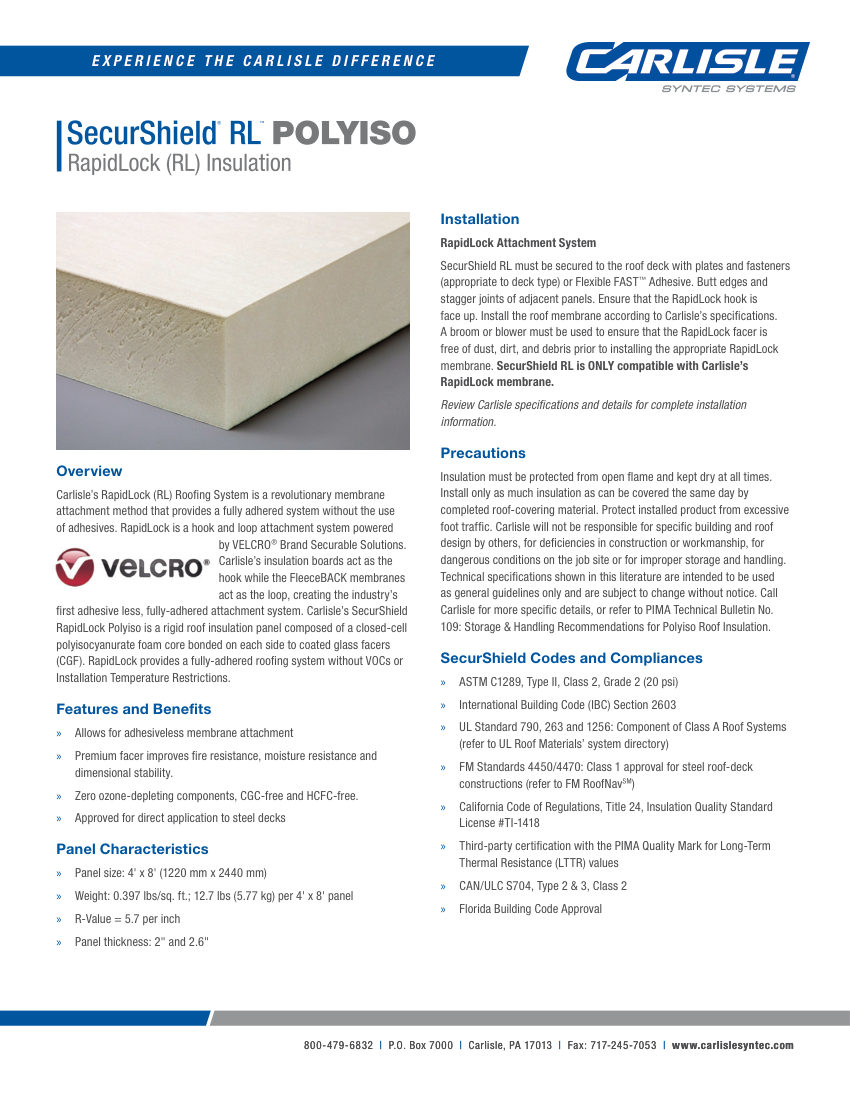

Carlisle SynTec SecurShield RapidLock (RL) Polyiso Insulation cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
SecurShield RapidLock (RL) Polyiso Insulation
Product type
Roofing
MasterFormat
07 22 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSecurShield RapidLock (RL) Polyiso Insulation
DescriptionCarlisle SynTec Polyisocyanurate Insulation Panel (Roofing Insulation). Model SecurShield RapidLock (RL). R-Value of 5.7 per inch; Weight of 0.397 lbs/sq. ft.; Moisture Vapor Permeance <1 perm; Water Absorption <1% volume. material: Closed-cell polyisocyanurate foam core with coated glass facers (CGF)
End connectionRapidLock hook and loop attachment system
Pressure Rating20 psi minimum compressive strength
FinishCoated glass facers (CGF)
MountingAdhesiveless, secured with plates/fasteners or Flexible FAST Adhesive
Dimensions4' x 8' (1220 mm x 2440 mm); Thickness 2" and 2.6".
