Carlisle SynTecSecurWeld® TPO Skirted Drip Edge
Carlisle SynTec TPO Skirted Drip Edge (Roofing Edge System). Model SecurWeld TPO Skirted Drip Edge. Features 60-mil (1.52 mm) pre-attached, factory-heat-welded TPO membrane flashing skirt; Manufactured in 12' lengths with slotted holes for thermal movement; Available in 3 standard and 5 special TPO colors; Warranted up to 30 years with 100mph windspeeds. material: 22GA L-shaped continuous cleat, 24GA TPO coated metal cover, 60-mil TPO membrane flashing skirt
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carlisle SynTec
- Catalog no.
- SecurWeld® TPO Skirted Drip Edge
- Product type
- Roofing
- MasterFormat
- 07 54 00

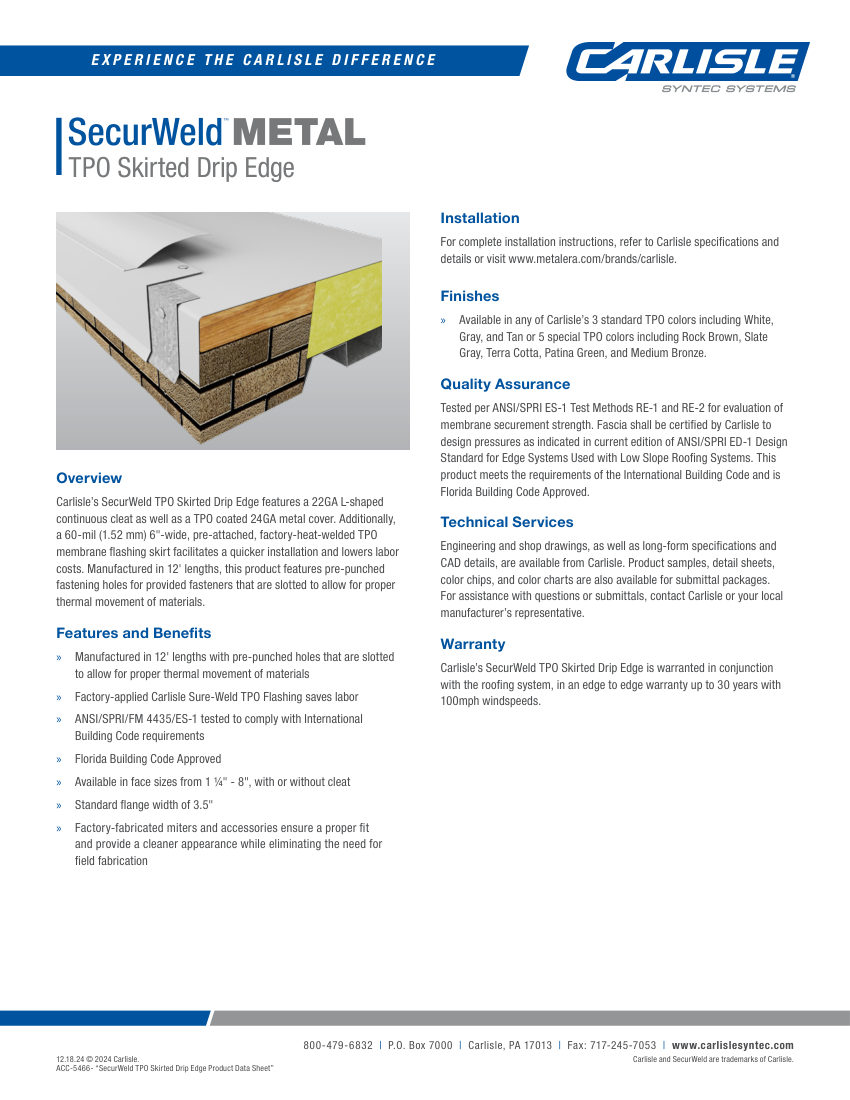

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | SecurWeld® TPO Skirted Drip Edge |
|---|---|
| Description | Carlisle SynTec TPO Skirted Drip Edge (Roofing Edge System). Model SecurWeld TPO Skirted Drip Edge. Features 60-mil (1.52 mm) pre-attached, factory-heat-welded TPO membrane flashing skirt; Manufactured in 12' lengths with slotted holes for thermal movement; Available in 3 standard and 5 special TPO colors; Warranted up to 30 years with 100mph windspeeds. material: 22GA L-shaped continuous cleat, 24GA TPO coated metal cover, 60-mil TPO membrane flashing skirt |
| Connection size | Face sizes 1 ¼" - 8" |
| End connection | Factory-fabricated miters |
| Finish | White, Gray, Tan, Rock Brown, Slate Gray, Terra |
- Official cut sheet, indexed
