DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

Carlisle SynTecSure-Flex PVC Curb Wrap Corners

Carlisle SynTec Curb Wrap Corner (Roofing Accessories). Model Sure-Flex PVC Curb Wrap Corners. Made of 60-mil (1.5 mm) reinforced Sure-Flex PVC KEE HP membrane; Features a 6-inch (150 mm) wide base flange and 12-inch (300 mm) overall height; Available in standard widths of 7", 13", and 19"; Compatible with curbs up to 36" x 36" (0.9 m x 0.9 m) using four corners. material: Reinforced 60-mil (1.5 mm) KEE HP membrane

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFSure-Flex-PVC-Curb-Wrap-Corners.pdfData sheet

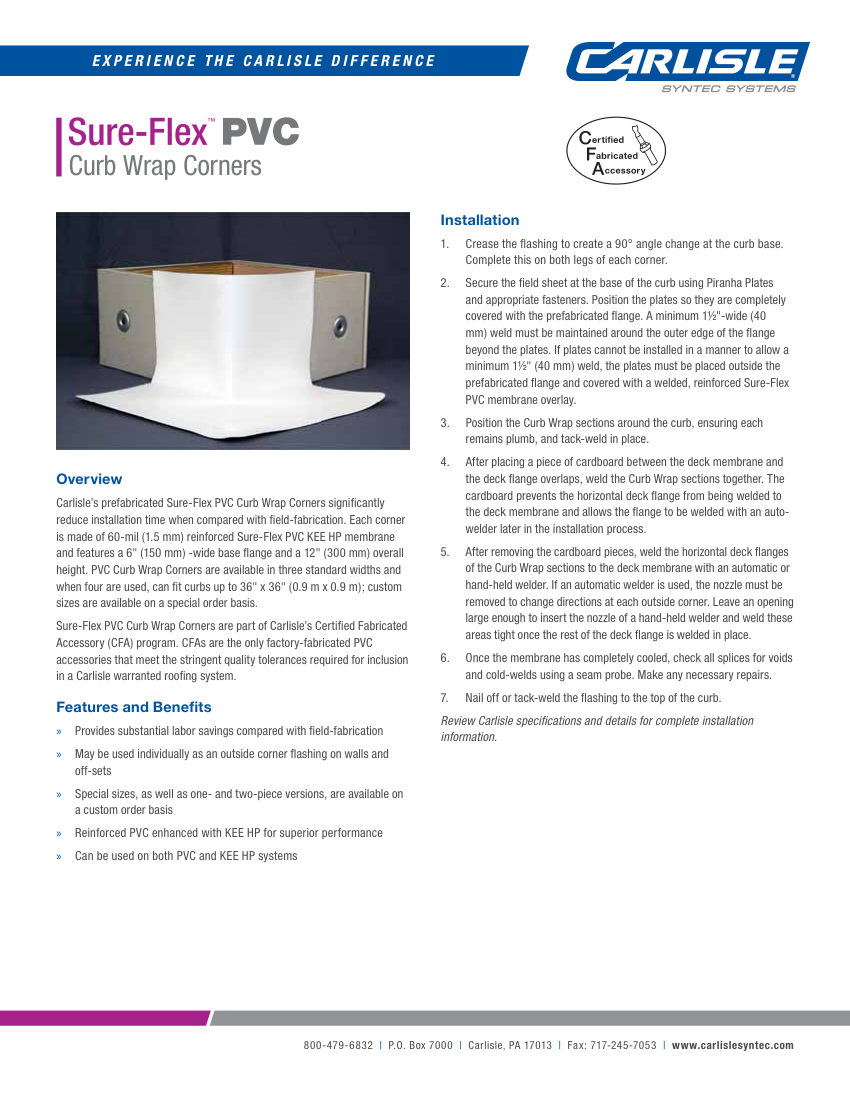

Carlisle SynTec Sure-Flex PVC Curb Wrap Corners cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carlisle SynTec
Catalog no.
Sure-Flex PVC Curb Wrap Corners
Product type
Roofing
MasterFormat
07 54 00
Cut sheet
PDF · manufacturer current

Product details

Catalog numberSure-Flex PVC Curb Wrap Corners
DescriptionCarlisle SynTec Curb Wrap Corner (Roofing Accessories). Model Sure-Flex PVC Curb Wrap Corners. Made of 60-mil (1.5 mm) reinforced Sure-Flex PVC KEE HP membrane; Features a 6-inch (150 mm) wide base flange and 12-inch (300 mm) overall height; Available in standard widths of 7", 13", and 19"; Compatible with curbs up to 36" x 36" (0.9 m x 0.9 m) using four corners. material: Reinforced 60-mil (1.5 mm) KEE HP membrane
MountingWelded
DimensionsWidths: 7", 13", 19"
Curb Sizes12", 24", 36"
Base Flange6"
Overall Height12"
ComplianceCarlisle Certified Fabricated Accessory (CFA).
