Carlisle SynTecSure-Weld TPO Non-Reinforced Flashing
Carlisle SynTec TPO Flashing (Roofing Membrane). Model Sure-Weld TPO Non-Reinforced Flashing. Tensile strength min. 1200 psi (8.3 MPa); Elongation ultimate min. 600%; Tear strength min. 250 lbf/in (43.8 kN/m); Weight typical 0.30 lb/ft² (1.5 kg/m²). material: Thermoplastic polyolefin (TPO)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carlisle SynTec
- Catalog no.
- Sure-Weld TPO Non-Reinforced Flashing
- Product type
- Roofing
- MasterFormat
- 07 54 00
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | Sure-Weld TPO Non-Reinforced Flashing |
|---|---|
| Description | Carlisle SynTec TPO Flashing (Roofing Membrane). Model Sure-Weld TPO Non-Reinforced Flashing. Tensile strength min. 1200 psi (8.3 MPa); Elongation ultimate min. 600%; Tear strength min. 250 lbf/in (43.8 kN/m); Weight typical 0.30 lb/ft² (1.5 kg/m²). material: Thermoplastic polyolefin (TPO) |
| Finish | White, Tan, Gray |
| Mounting | Heat welded |
| Dimensions | 60-mil thickness; 12" and 24" widths; 50' rolls |
| Compliance | ASTM D 412, D 624, D 1149, D 573, D 1204, G 155. |

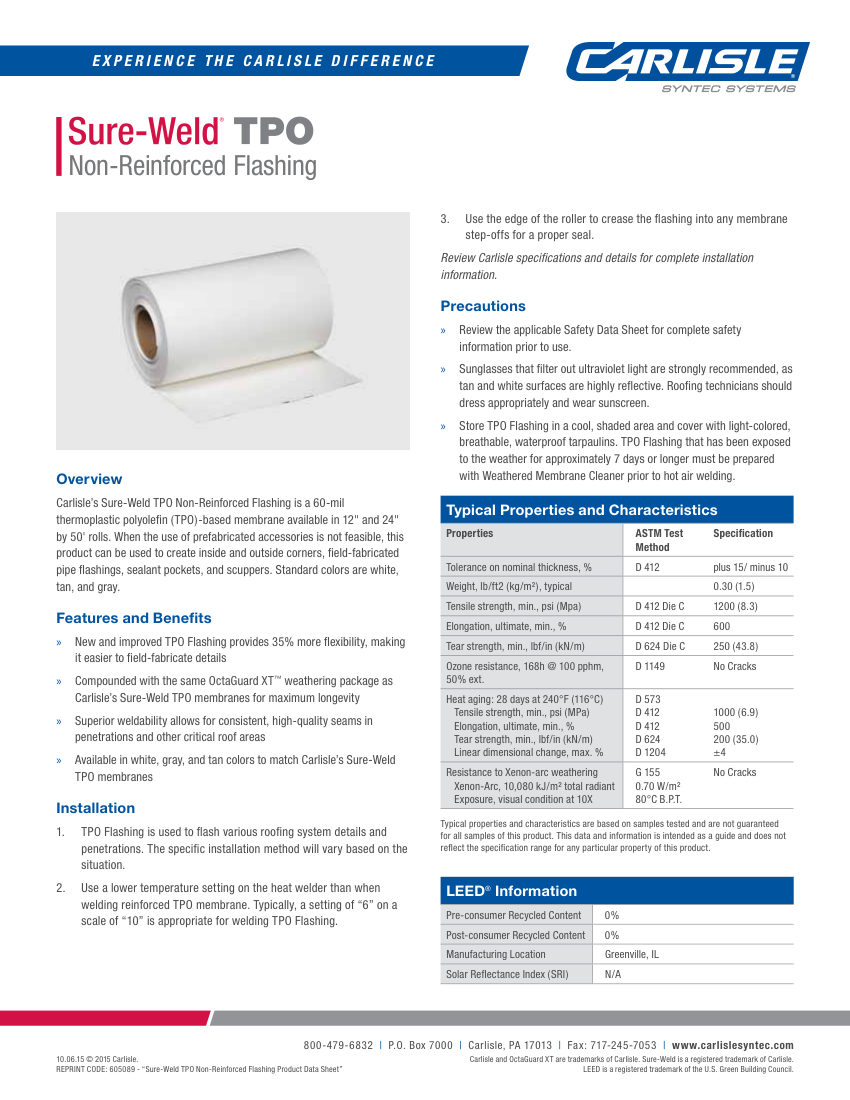

- Official cut sheet, indexed
