Carlisle SynTecThermaThin™ 7 Polyiso Insulation
Carlisle SynTec Rigid Roof Insulation Panel (Roof Insulation). Model ThermaThin 7. R-value of 7 per inch; Compressive strength minimum 20 psi (138 kPa); Service temperature range -100°F to 250°F (-73°C to 122°C); Moisture vapor transmission <1.5 perms. material: Closed cell polyisocyanurate foam core with glass reinforced or coated glass facers
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carlisle SynTec
- Catalog no.
- ThermaThin™ 7 Polyiso Insulation
- Product type
- Roofing
- MasterFormat
- 07 22 00
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ThermaThin™ 7 Polyiso Insulation |
|---|---|
| Description | Carlisle SynTec Rigid Roof Insulation Panel (Roof Insulation). Model ThermaThin 7. R-value of 7 per inch; Compressive strength minimum 20 psi (138 kPa); Service temperature range -100°F to 250°F (-73°C to 122°C); Moisture vapor transmission <1.5 perms. material: Closed cell polyisocyanurate foam core with glass reinforced or coated glass facers |
| Finish | ReadyFlash Technology (dark and light facers) |
| Mounting | Ballasted, Mechanically Fastened, or Fully Adhered |
| Dimensions | 4' x 4' (1220 mm x 1220 mm) and 4' x 8' (1220 mm x 2440 mm); Thickness 1.45" (37 mm) to 2.5" (64 mm) |
| Compliance | ASTM C128 |

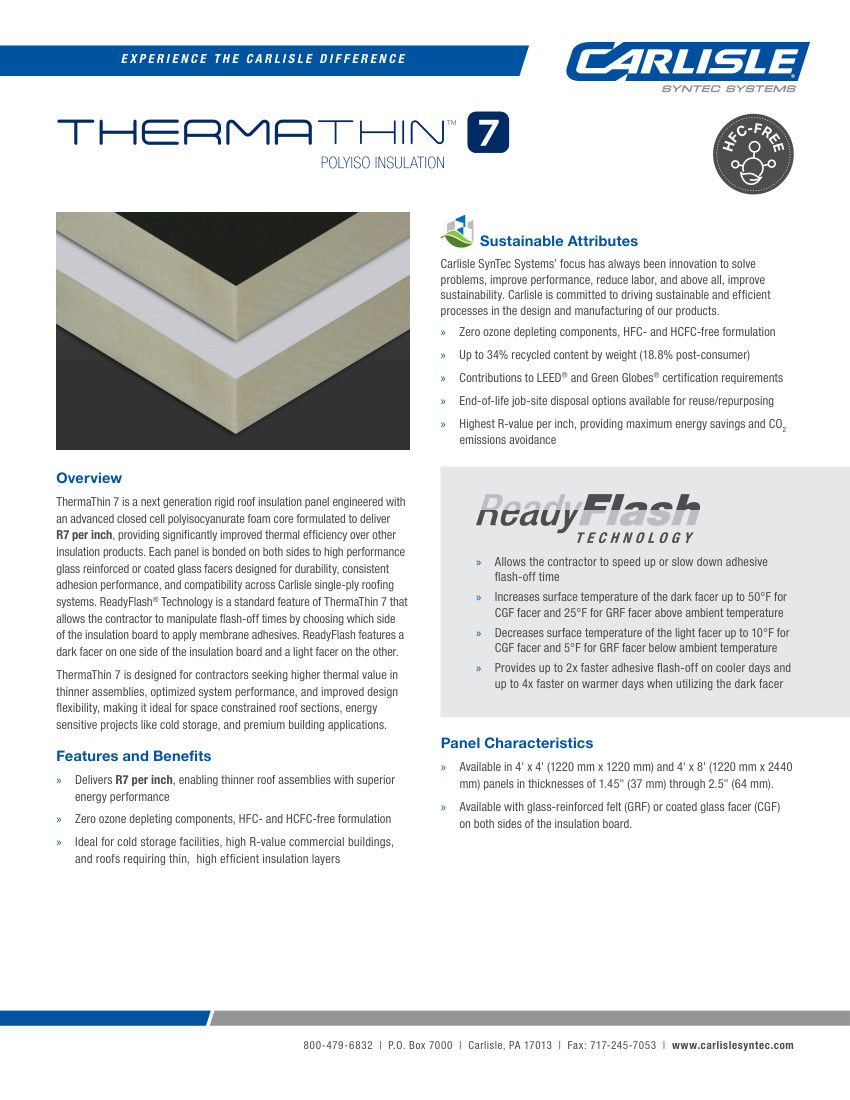

- Official cut sheet, indexed
