Carlisle SynTecTreadSafe Tube Fastening System (PDS)TreadSafe Tube Fastening System
Carlisle SynTec Tube Fastening System (Roofing Fastening Systems). Model TreadSafe. Designed for compressible insulation to minimize membrane penetration; Compatible with TPO and PVC roofing membranes; Accommodates Carlisle HP-X and RetroDriller fasteners; Packaged in buckets of 250 tubes and 250 plates. material: Galvalume (plates), Polymer (tubes)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carlisle SynTec
- Catalog no.
- TreadSafe Tube Fastening System
- Product type
- Roofing
- MasterFormat
- 07 50 00

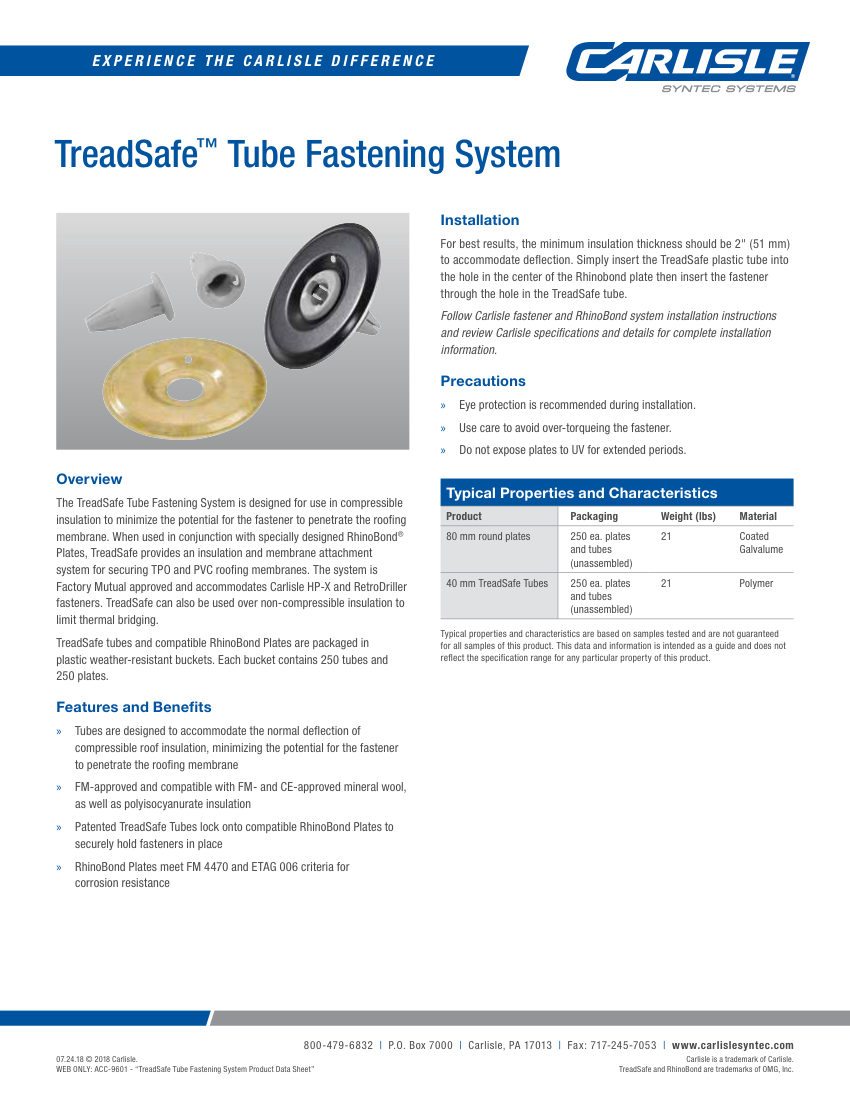

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | TreadSafe Tube Fastening System |
|---|---|
| Description | Carlisle SynTec Tube Fastening System (Roofing Fastening Systems). Model TreadSafe. Designed for compressible insulation to minimize membrane penetration; Compatible with TPO and PVC roofing membranes; Accommodates Carlisle HP-X and RetroDriller fasteners; Packaged in buckets of 250 tubes and 250 plates. material: Galvalume (plates), Polymer (tubes) |
| Connection size | 80 mm round plates, 40 mm tubes |
| End connection | Locks onto RhinoBond Plates |
| Finish | Coated |
| Mounting | Insert into insulation hole, fastener through tube |
| Dimensions | 80 mm plates, 40 mm tubes. |
