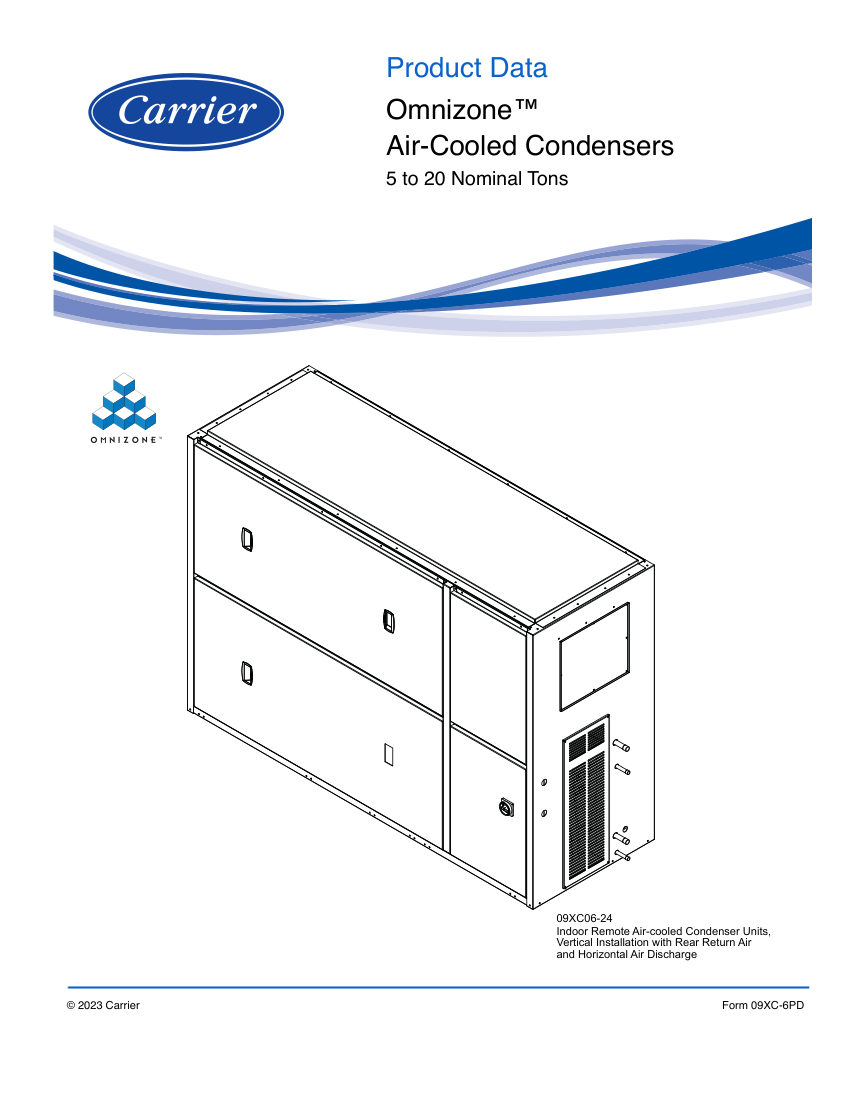

Carrier09XC06-24 Omnizone™ Air-Cooled Condensers 5 to 20 Nominal Tons09XC
Carrier Air-Cooled Condenser (Omnizone). Model 09XC06-24. Nominal capacities: 5, 7-1/2, 10, 12, 15, and 20 tons; High static belt drive centrifugal fans; Rear return air and horizontal air discharge; Subcooling liquid refrigerant circuit. material: Galvanized steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carrier
- Catalog no.
- 09XC
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 09XC |
|---|---|
| Description | Carrier Air-Cooled Condenser (Omnizone). Model 09XC06-24. Nominal capacities: 5, 7-1/2, 10, 12, 15, and 20 tons; High static belt drive centrifugal fans; Rear return air and horizontal air discharge; Subcooling liquid refrigerant circuit. material: Galvanized steel |
| Finish | Powercoat Paint System |
| Mounting | Indoor, Vertical Installation |
| Compliance | UL 1995, ISO 9001:2015, ASTM B117 (500-hour salt spray) |
| Voltage | 24-v control. |
