CarrierRemote Cooler Mounting Accessory for 30RAP010-15030RAP

Carrier Remote Evaporator Mounting Accessory (HVAC Accessories). Model 30RA-900---060, 30RA-900---068 through 30RA-900---075. Compatible with 30RAP010-150 base units

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF30RAP.pdfData sheet

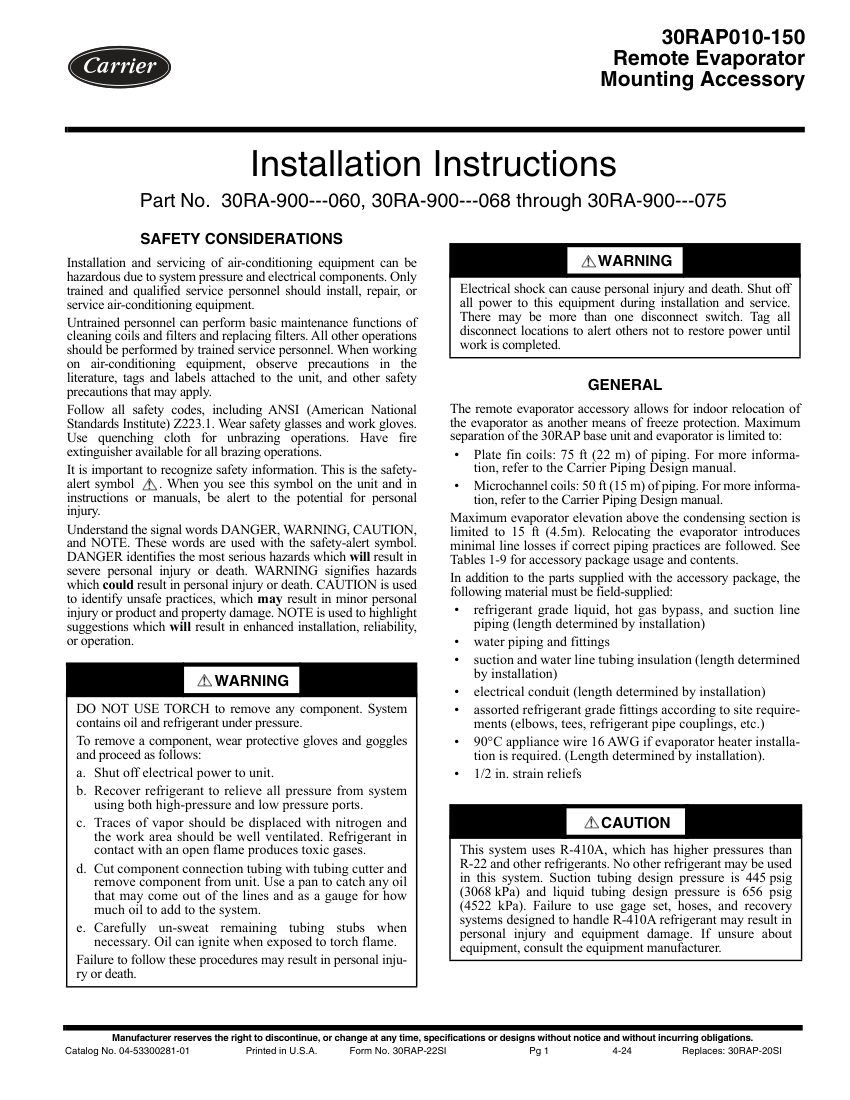

Carrier 30RAP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
30RAP
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number30RAP
DescriptionCarrier Remote Evaporator Mounting Accessory (HVAC Accessories). Model 30RA-900---060, 30RA-900---068 through 30RA-900---075. Compatible with 30RAP010-150 base units
Maximum separation75 ft (22 m) for plate fin coils
Maximum separation50 ft (15 m) for microchannel coils; Maximum evaporator elevation: 15 ft (4.5 m). pressureRating: Suction: 445 psig (3068 kPa), Liquid: 656 psig (4522 kPa)
MountingRemote Evaporator
ComplianceANSI Z223.1.
