CarrierSpring Isolation Kit Accessory for 30XW150-40030XW

Carrier Spring Isolation Kit (HVAC Accessories). Model 00EFN900009300A, 00EFN900009400A, 00EFN900009500A. Consists of 4 cast iron spring-flex mounting isolators; Designed for Carrier 30XW150-400 chillers; Reduces vibration and noise transmission; Requires 1/4 to 1/2 in. gap between upper and lower housings. material: Cast iron, oil resistant elastomeric pads

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF30XW.pdfData sheet

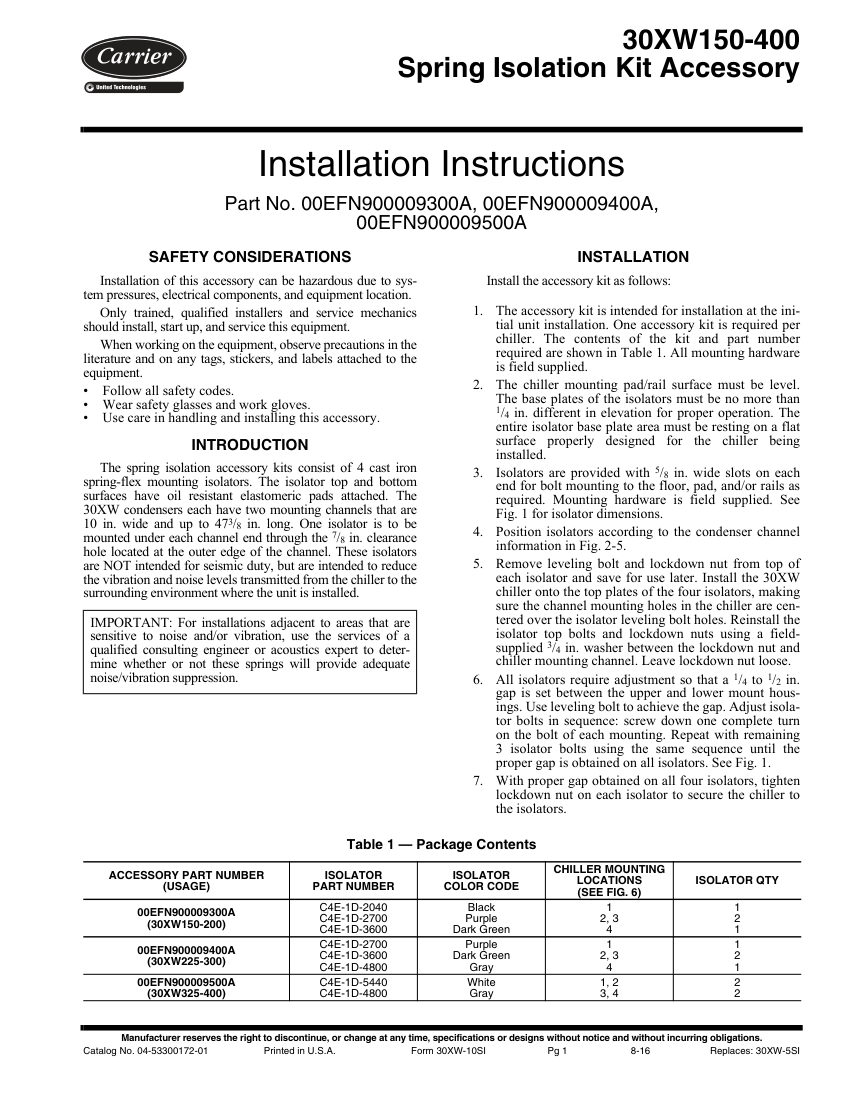

Carrier 30XW cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
30XW
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number30XW
DescriptionCarrier Spring Isolation Kit (HVAC Accessories). Model 00EFN900009300A, 00EFN900009400A, 00EFN900009500A. Consists of 4 cast iron spring-flex mounting isolators; Designed for Carrier 30XW150-400 chillers; Reduces vibration and noise transmission; Requires 1/4 to 1/2 in. gap between upper and lower housings. material: Cast iron, oil resistant elastomeric pads
MountingBolt mounting via 5/8 in. wide slots
Dimensions4 isolators per kit; 1/4 to 1/2 in. gap adjustment
ComplianceNot intended for seismic duty.
