Carrier36CBAL,CBAJ Series Active Chilled Beams, 8 to 180 cfm36CB

Carrier Active Chilled Beam (Carrier 36CB Series). Model 36CBAL, 36CBAJ. Available in 1-way (36CBAJ) and 2-way (36CBAL) discharge configurations; Uses induction principle for room air circulation without electric fan; Designed for sensible cooling loads only; Includes pressure taps for airflow balancing. pressureRating: 0.2 to 0.8 in. wg inlet static pressure

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF36CB.pdfData sheet

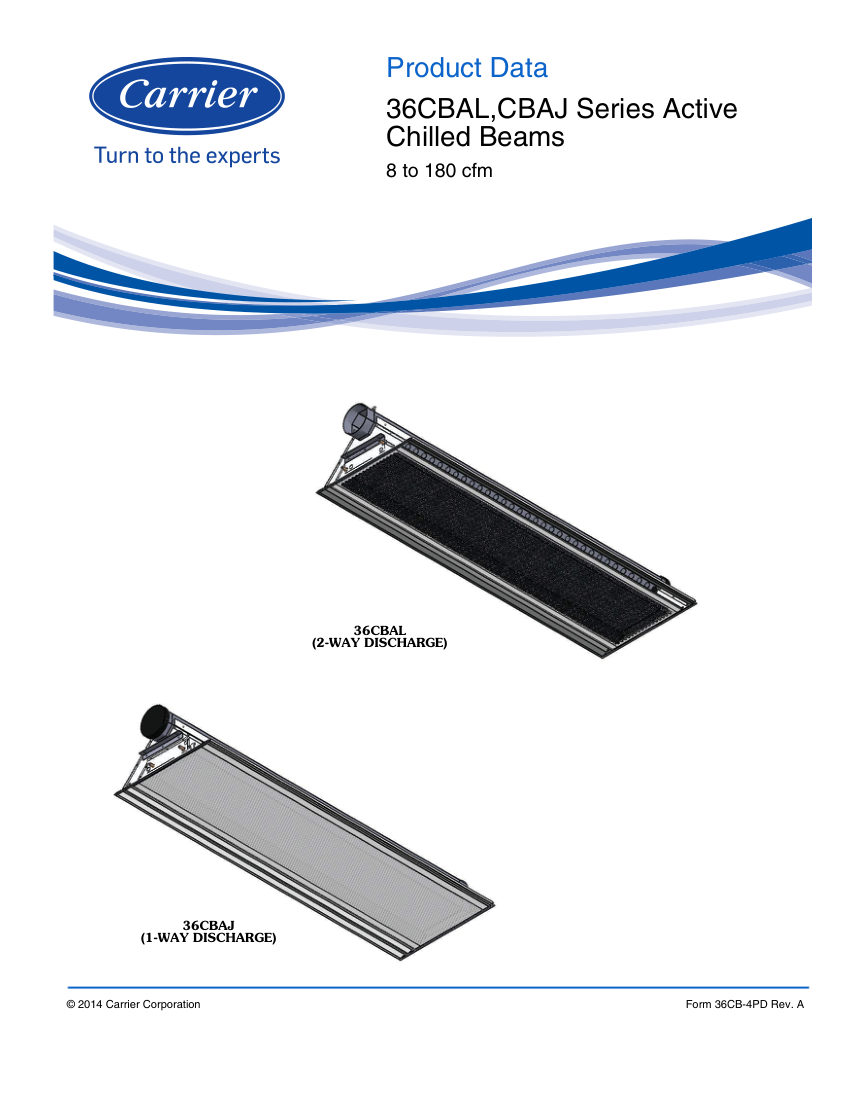

Carrier 36CB cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
36CB
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number36CB
DescriptionCarrier Active Chilled Beam (Carrier 36CB Series). Model 36CBAL, 36CBAJ. Available in 1-way (36CBAJ) and 2-way (36CBAL) discharge configurations; Uses induction principle for room air circulation without electric fan; Designed for sensible cooling loads only; Includes pressure taps for airflow balancing. pressureRating: 0.2 to 0.8 in. wg inlet static pressure
Flow Rate8 to 180 cfm
FinishWhite, Off White, Black, Special, or Galvanized Steel
MountingCeiling mounted with wire hanging system
Dimensions2 x 2 ft, 2 x 4 ft, 2 x 6 ft.
