Carrier38APD

Carrier Long Line Check Valve Accessory (HVAC Refrigeration). Model 38AP-900---011, 38AP-900---012, 38AP-900---013. Prevents charge migration to compressor; Required for liquid lines 100 ft (30.5 m) or more; Required for 025-030 dual circuit units with evap higher than condenser and lines >55 ft; Mountable in any orientation (horizontal or vertical). connectionSize: 5/8 in. ODF, 7/8 in. ODF, 1 1/8 in. ODF

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF38APD.pdfData sheet

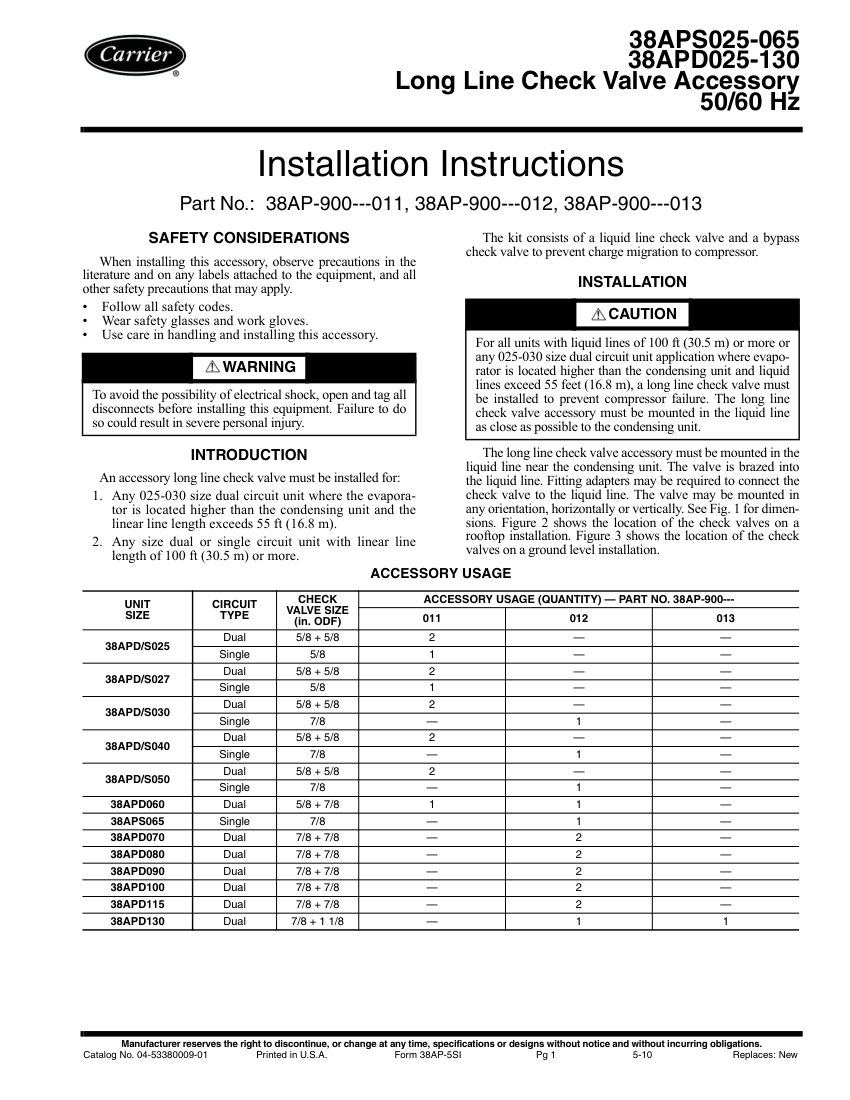

Carrier 38APD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
38APD
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number38APD
DescriptionCarrier Long Line Check Valve Accessory (HVAC Refrigeration). Model 38AP-900---011, 38AP-900---012, 38AP-900---013. Prevents charge migration to compressor; Required for liquid lines 100 ft (30.5 m) or more; Required for 025-030 dual circuit units with evap higher than condenser and lines >55 ft; Mountable in any orientation (horizontal or vertical). connectionSize: 5/8 in. ODF, 7/8 in. ODF, 1 1/8 in. ODF
End connectionBrazed
MountingLiquid line near condensing unit
Dimensions20.000 in. (508 mm)
Voltage50/60 Hz.
