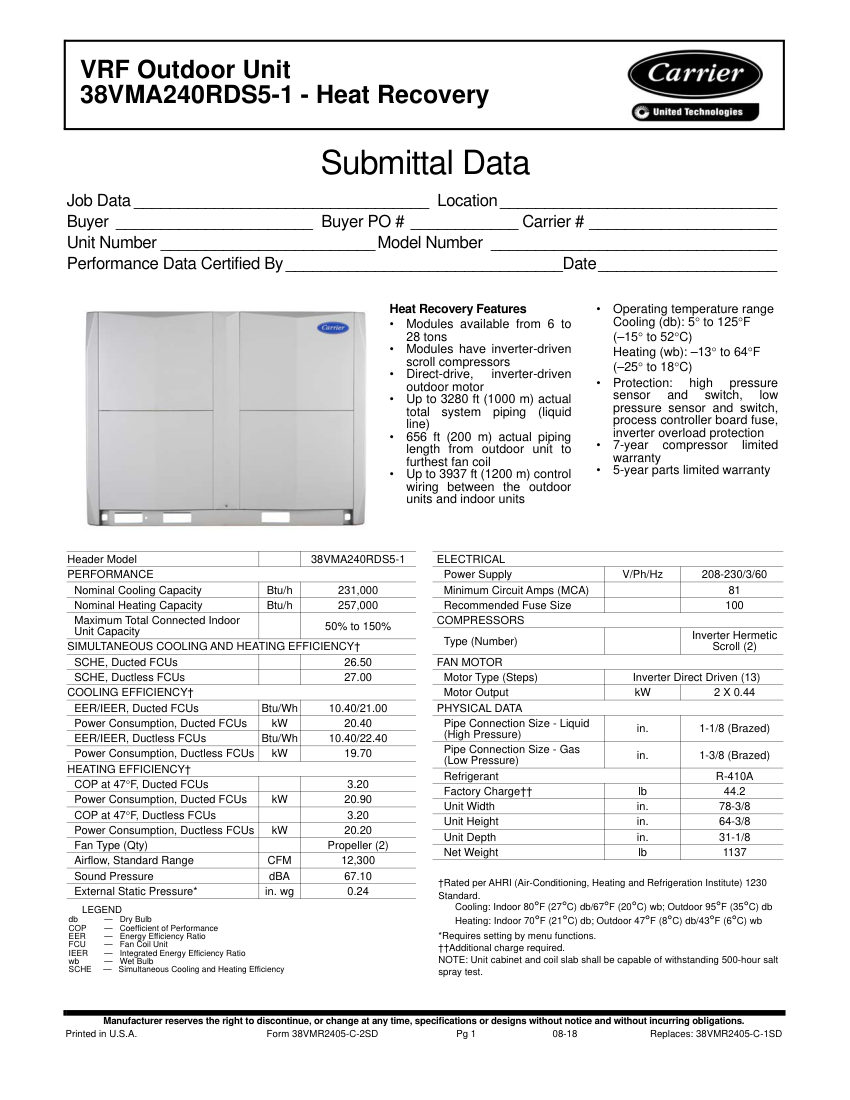

CarrierCarrier VRF Heat Recovery Outdoor Unit, 20 Ton, 208-230/3/6038VMR
Carrier Heat Recovery VRF Outdoor Unit (VRF Outdoor Unit). Model 38VMA240RDS5-1. Nominal Cooling Capacity: 231,000 Btu/h
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carrier
- Catalog no.
- 38VMR
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 38VMR |
|---|---|
| Description | Carrier Heat Recovery VRF Outdoor Unit (VRF Outdoor Unit). Model 38VMA240RDS5-1. Nominal Cooling Capacity: 231,000 Btu/h |
| Nominal Heating Capacity | 257,000 Btu/h |
| Refrigerant | R-410A |
| Compressors | 2 Inverter Hermetic Scroll. connectionSize: Liquid: 1-1/8 in (Brazed), Gas: 1-3/8 in (Brazed) |
| End connection | Brazed |
| Flow Rate | 12,300 CFM |
| Dimensions | 78-3/8 in W x 64-3/8 in H x 31-1/8 in D |
| Compliance | AHRI 1230 |
| Voltage | 208-230/3/60. |
