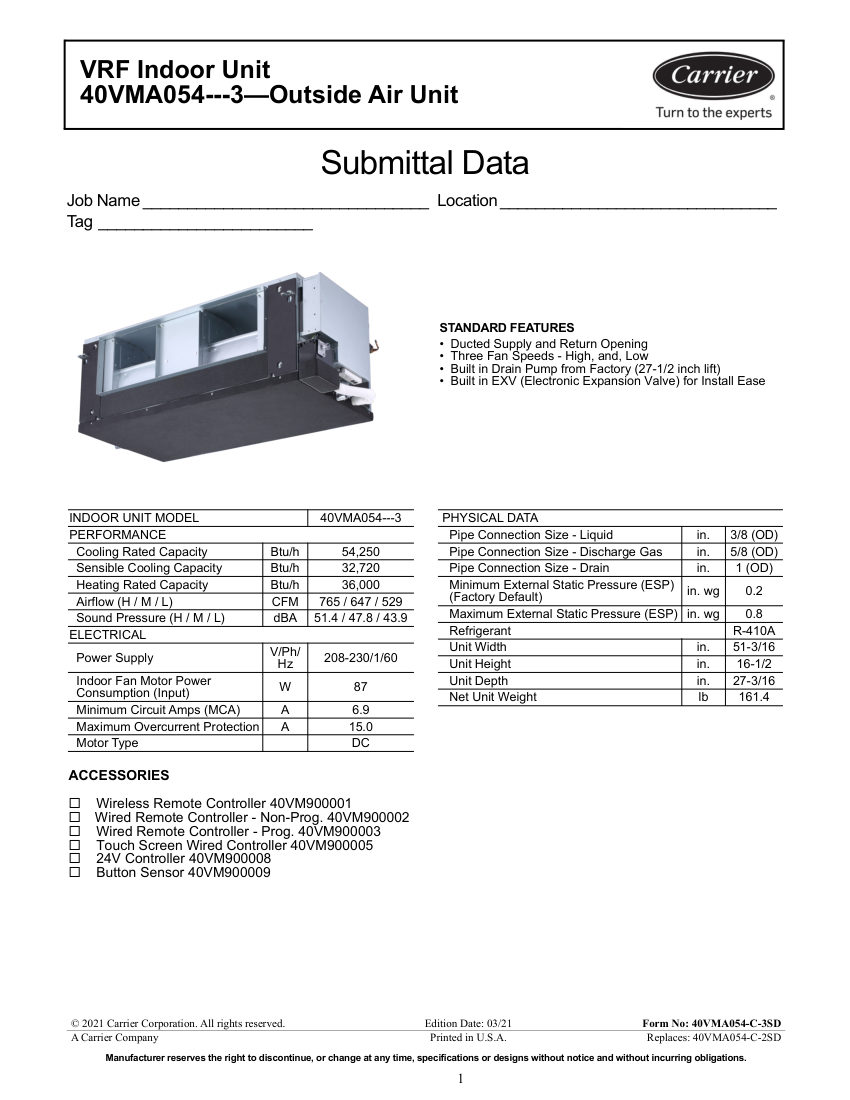

CarrierCarrier VRF Outside Air Unit40VMA

Name: Carrier Carrier VRF Outside Air Unit (40VMA)
Brand: Carrier
SKU: 40VMA

Carrier VRF Outside Air Unit (VRF). Model 40VMA054---3. Cooling Rated Capacity: 54,250 Btu/h

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	40VMA
Description	Carrier VRF Outside Air Unit (VRF). Model 40VMA054---3. Cooling Rated Capacity: 54,250 Btu/h
Heating Rated Capacity	36,000 Btu/h
Refrigerant	R-410A; Built-in Drain Pump: 27-1/2 inch lift. connectionSize: Liquid 3/8 in OD, Discharge Gas 5/8 in OD, Drain 1 in OD
End connection	Ducted Supply and Return
Pressure Rating	Min ESP 0.2 in wg, Max ESP 0.8 in wg
Flow Rate	765 / 647 / 529 CFM
Mounting	Threaded Rod with Leveling Nut
Dimensions	51-3/16 in W x 16-1/2 in H x 27-3/16 in D.
