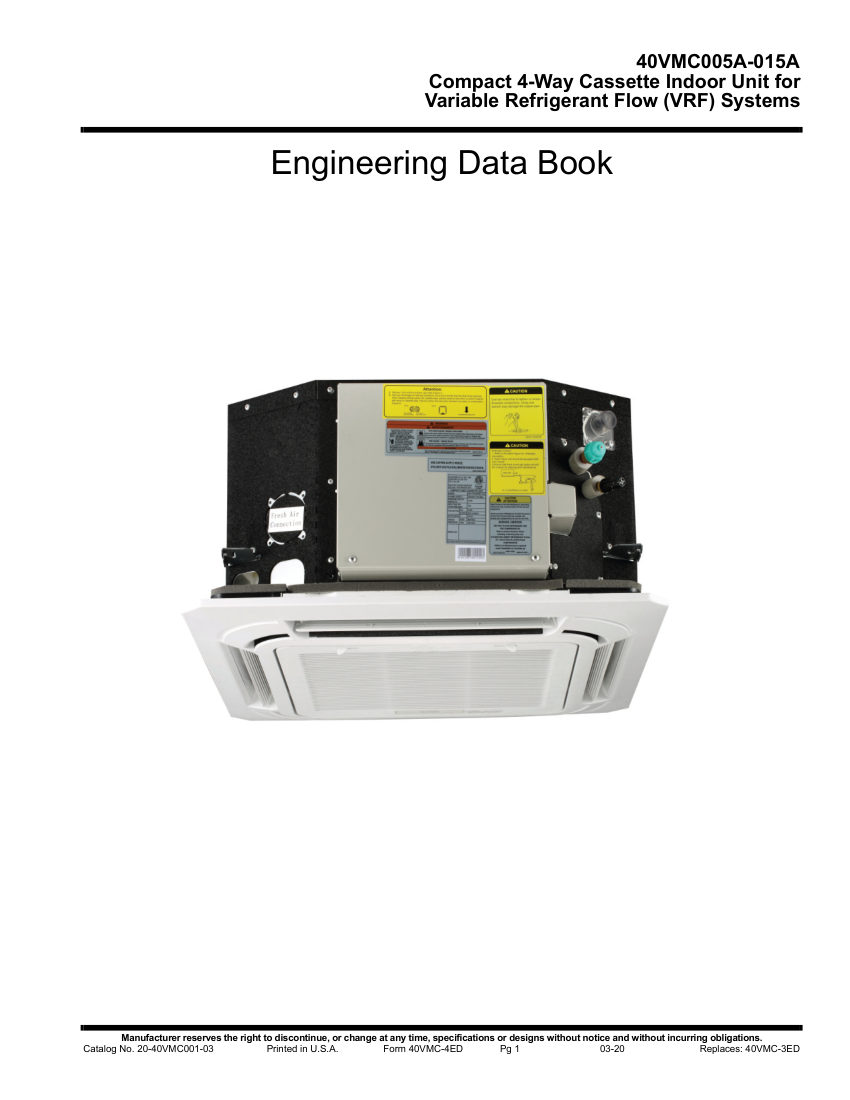

Carrier40VMC
Carrier Compact 4-Way Cassette (VRF Indoor Unit). Model 40VMC005A-015A. Cooling Capacity: 5,070 to 9,130 Btu/h
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carrier
- Catalog no.
- 40VMC
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 40VMC |
|---|---|
| Description | Carrier Compact 4-Way Cassette (VRF Indoor Unit). Model 40VMC005A-015A. Cooling Capacity: 5,070 to 9,130 Btu/h |
| Heating Capacity | 6,000 to 10,000 Btu/h |
| Motor Type | DC Motor |
| Fan Type | Centrifugal. material: Copper tube, Aluminum fin |
| Connection size | 1/2 in (Gas), 1/4 in (Liquid), 1 in (Condensate) |
| Pressure Rating | Max External Static Pressure 0.04 in. WG |
| Flow Rate | 300/241/241 CFM (005A), 306/282/229 CFM (007A/009A) |
| Mounting | Ceiling Cassette |
| Dimensions | 10-1/4 x 24-3/4 x 22-7/16 in (Unit), 2 x 25-1/2 x 25-1/2 in (Panel). |
