Carrier40VMD

Carrier Sub MDC (VRF Multiport Distribution Controller). Model 40VMD016S--3. 16 ports for indoor unit connections; Max capacity per indoor unit port: 54 kBtu/h

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF40VMD.pdfData sheet

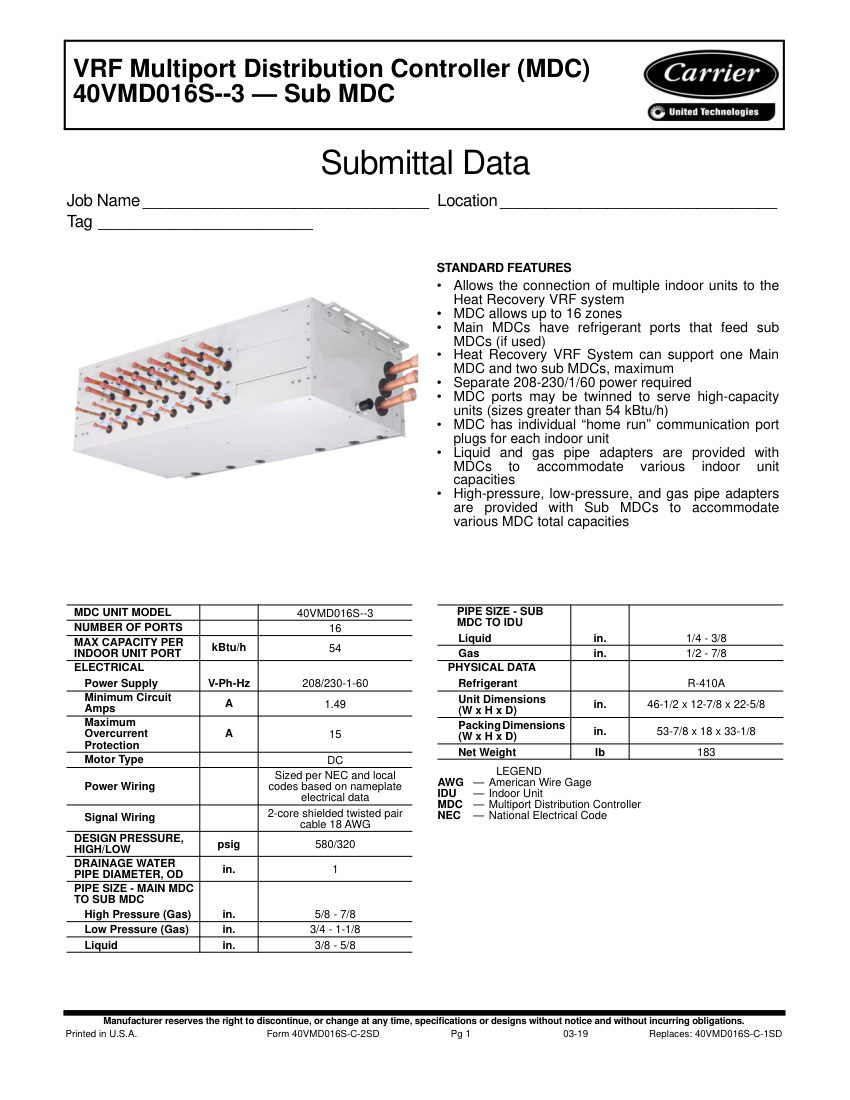

Carrier 40VMD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
40VMD
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number40VMD
DescriptionCarrier Sub MDC (VRF Multiport Distribution Controller). Model 40VMD016S--3. 16 ports for indoor unit connections; Max capacity per indoor unit port: 54 kBtu/h
Refrigerant typeR-410A
Net weight183 lb. connectionSize: Liquid: 1/4 - 3/8 in., Gas: 1/2 - 7/8 in. (Sub MDC to IDU)
End connectionRefrigerant pipe adapters, 2-core shielded twisted pair cable 18 AWG
Pressure Rating580/320 psig (High/Low)
Dimensions46-1/2 x 12-7/8 x 22-5/8 in. (W x H x D)
ComplianceNEC
Voltage208/230-1-60.
