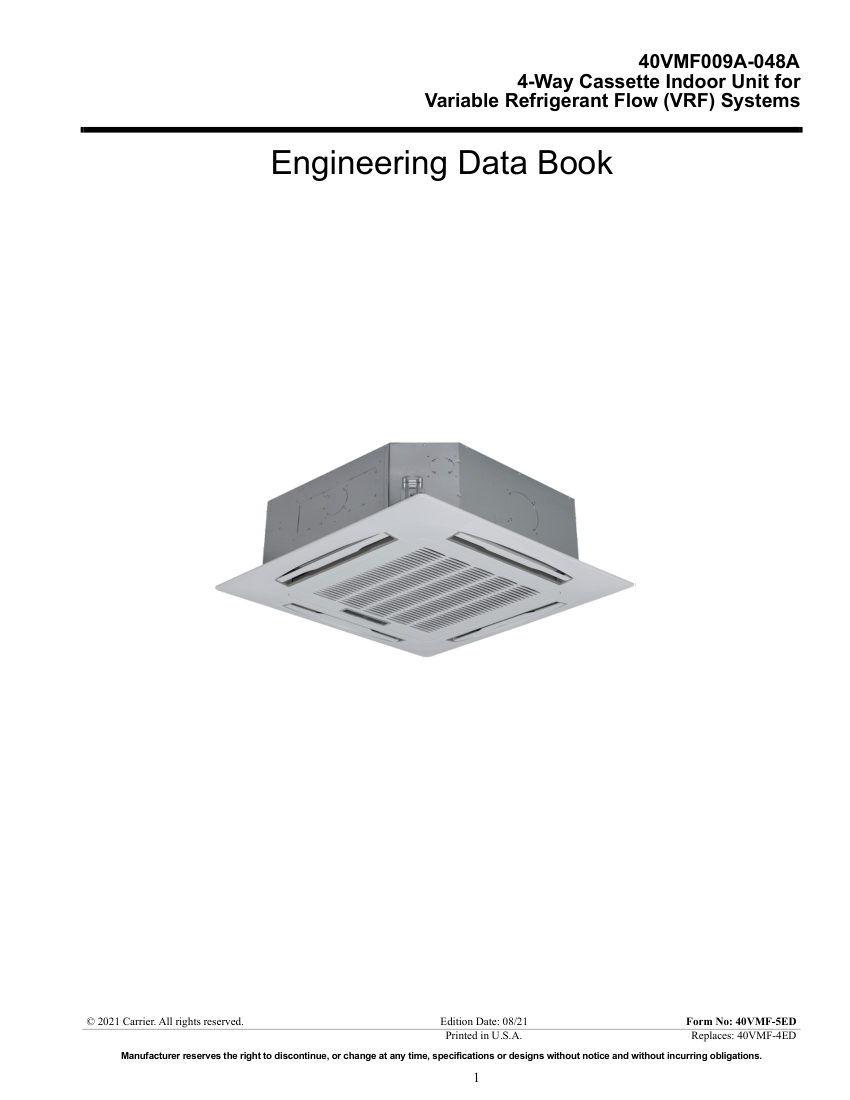

Carrier40VMF VRF 4-Way Cassette Indoor Unit Engineering Databook40VMF

Name: Carrier 40VMF VRF 4-Way Cassette Indoor Unit Engineering Databook
Brand: Carrier
SKU: 40VMF

Carrier 4-Way Cassette Indoor Unit (VRF Indoor Unit). Model 40VMF009A-048A. Total Cooling Capacity: 9,000 Btu/h (009A) / 12,000 Btu/h (012A)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	40VMF
Description	Carrier 4-Way Cassette Indoor Unit (VRF Indoor Unit). Model 40VMF009A-048A. Total Cooling Capacity: 9,000 Btu/h (009A) / 12,000 Btu/h (012A)
Heating Capacity	10,000 Btu/h (009A) / 13,500 Btu/h (012A)
Motor Type	DC Motor
Fan Type	Centrifugal. material: Copper tube, Aluminum fin
Connection size	1/2 in (Gas), 1/4 in (Liquid), 1-1/4 in (Condensate)
Pressure Rating	Max External Static Pressure 0.12 in. WG
Flow Rate	460/390/330 CFM (009A), 560/460/390 CFM (012A)
Mounting	Cassette
Dimensions	9 x 33-1/8 x 33-1/8 in.
