CarrierCarrier VRF High Static Duct40VMH

Name: Carrier Carrier VRF High Static Duct (40VMH)
Brand: Carrier
SKU: 40VMH

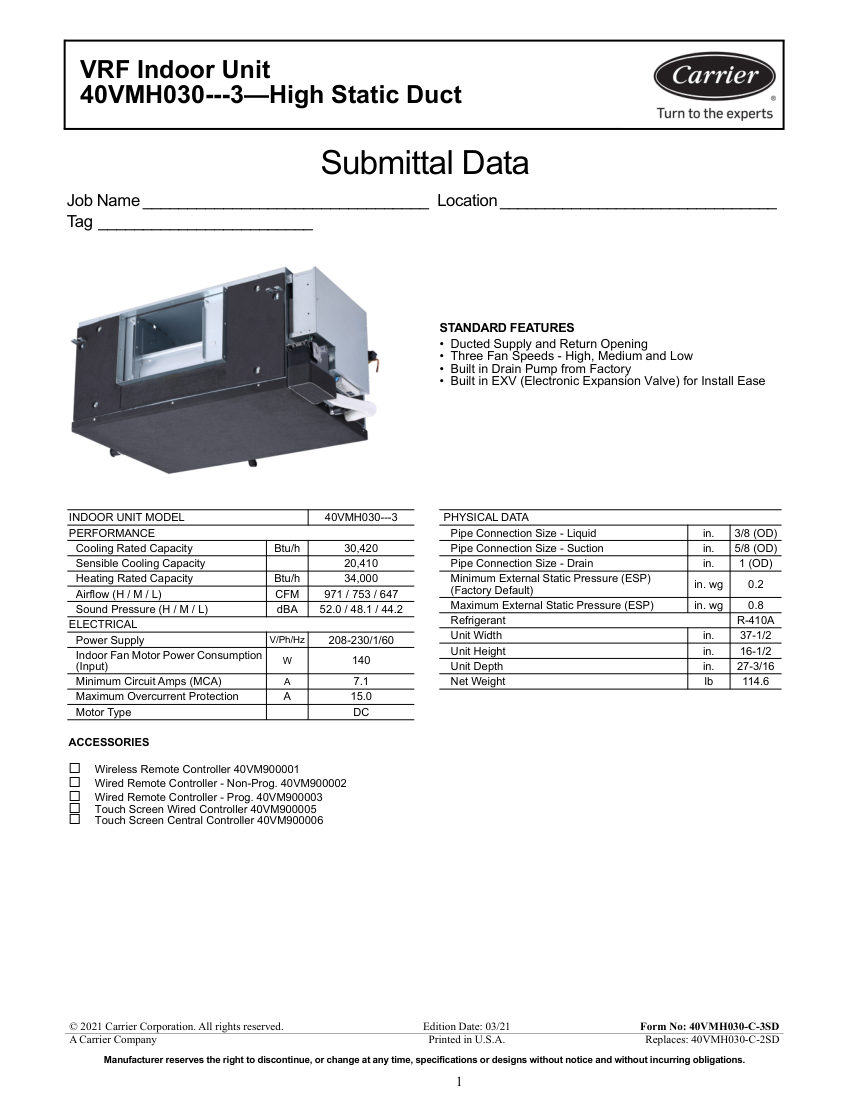

Carrier High Static Ducted VRF Indoor Unit (VRF Indoor Unit). Model 40VMH030---3. Cooling Rated Capacity: 30,420 Btu/h

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	40VMH
Description	Carrier High Static Ducted VRF Indoor Unit (VRF Indoor Unit). Model 40VMH030---3. Cooling Rated Capacity: 30,420 Btu/h
Heating Rated Capacity	34,000 Btu/h
Refrigerant	R-410A
Sound Pressure	52.0 / 48.1 / 44.2 dBA (H/M/L). connectionSize: Liquid 3/8 in OD, Suction 5/8 in OD, Drain 1 in OD
End connection	Refrigerant-pipe flared
Pressure Rating	Max External Static Pressure 0.8 in. wg
Flow Rate	971 / 753 / 647 CFM (H/M/L)
Mounting	4 Mounting Brackets
Dimensions	37-1/2 in W x 16-1/2 in H x 27-3/16 in D.
