CarrierCarrier VRF Low Static Duct40VML

Name: Carrier Carrier VRF Low Static Duct (40VML)
Brand: Carrier
SKU: 40VML

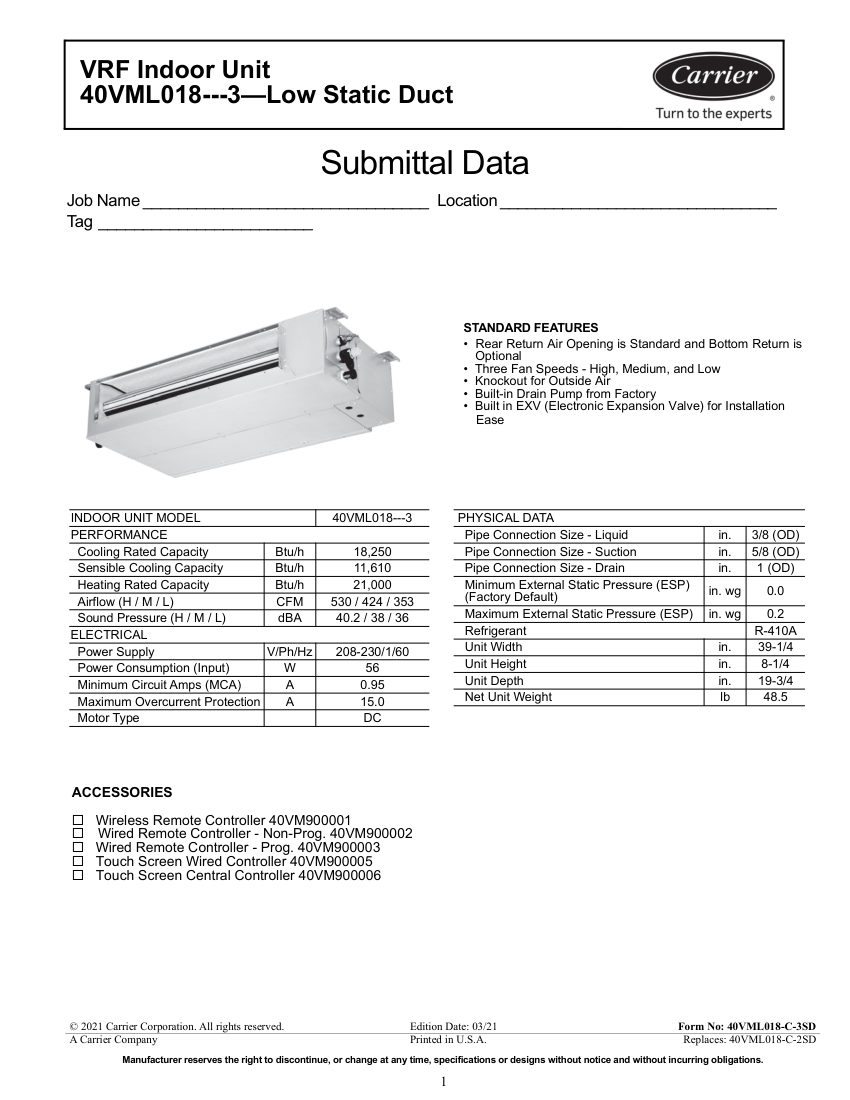

Carrier Low Static Duct VRF Indoor Unit (VRF Indoor Unit). Model 40VML018---3. Cooling Rated Capacity: 18,250 Btu/h

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	40VML
Description	Carrier Low Static Duct VRF Indoor Unit (VRF Indoor Unit). Model 40VML018---3. Cooling Rated Capacity: 18,250 Btu/h
Heating Rated Capacity	21,000 Btu/h
Refrigerant	R-410A
Net Unit Weight	48.5 lb. connectionSize: Liquid 3/8 in OD, Suction 5/8 in OD, Drain 1 in OD
Pressure Rating	Max External Static Pressure 0.2 in. wg
Flow Rate	530 / 424 / 353 CFM (H/M/L)
Mounting	Suspension Brackets
Dimensions	39-1/4 in W x 8-1/4 in H x 19-3/4 in D
Voltage	208-230/1/60 V/Ph/Hz.
