DIV 23 · HVACHVACCUT SHEET INDEXED

CarrierCarrier VRF Medium Static Duct40VMM

Name: Carrier Carrier VRF Medium Static Duct (40VMM)
Brand: Carrier
SKU: 40VMM

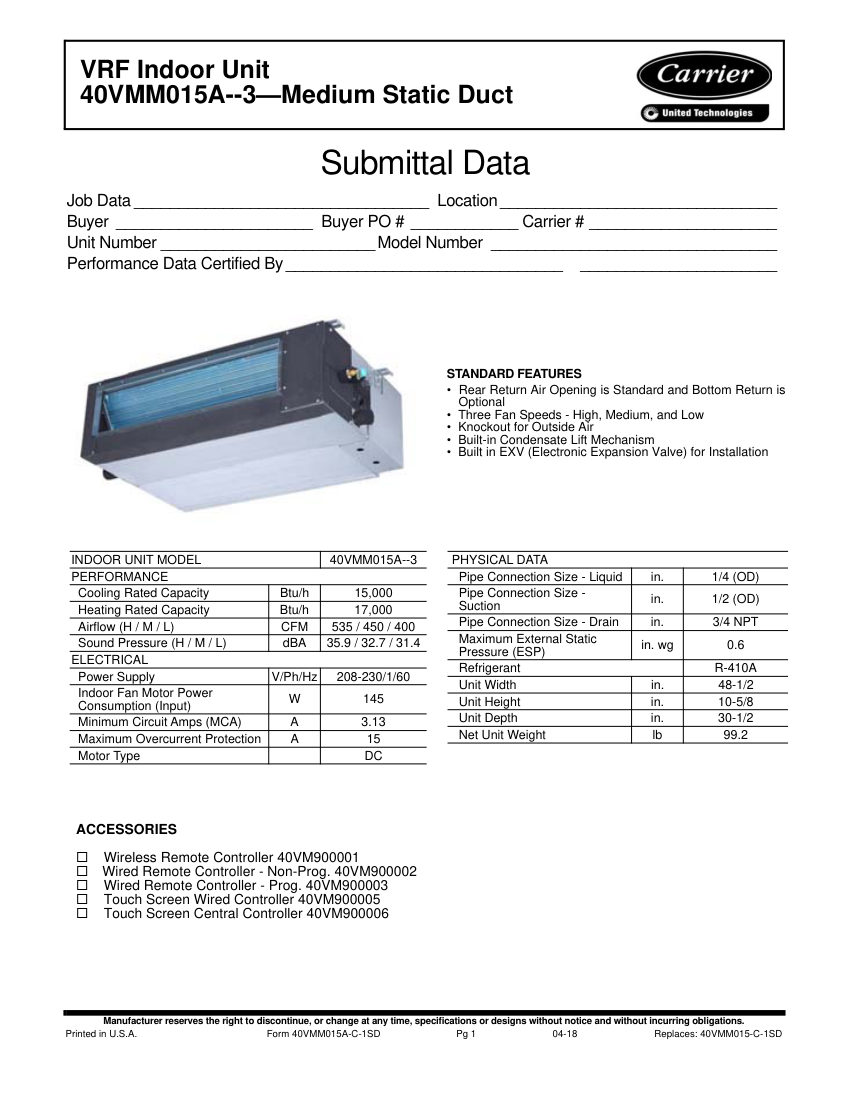

Carrier Medium Static Duct VRF Indoor Unit (VRF Indoor Unit). Model 40VMM015A--3. Cooling Rated Capacity: 15,000 Btu/h

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	40VMM
Description	Carrier Medium Static Duct VRF Indoor Unit (VRF Indoor Unit). Model 40VMM015A--3. Cooling Rated Capacity: 15,000 Btu/h
Heating Rated Capacity	17,000 Btu/h
Refrigerant	R-410A
Indoor Fan Motor Power	145 W. connectionSize: Liquid 1/4 in OD, Suction 1/2 in OD, Drain 3/4 NPT
Pressure Rating	Max External Static Pressure 0.6 in. wg
Flow Rate	535 / 450 / 400 CFM (H/M/L)
Mounting	Rear Return Air Opening Standard, Bottom Return Optional
Dimensions	48-1/2 in W x 10-5/8 in H x 30-1/2 in D
Voltage	208-230/1/60 V/Ph/Hz.
