DIV 23 · HVACHVACCUT SHEET INDEXED
CarrierCarrier VRF Floor Console Recessed40VMR
Carrier Floor Console (VRF Indoor Unit). Model 40VMR018---3. Cooling Rated Capacity: 18,000 Btu/h
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carrier
- Catalog no.
- 40VMR
- Product type
- HVAC
- MasterFormat
- 23

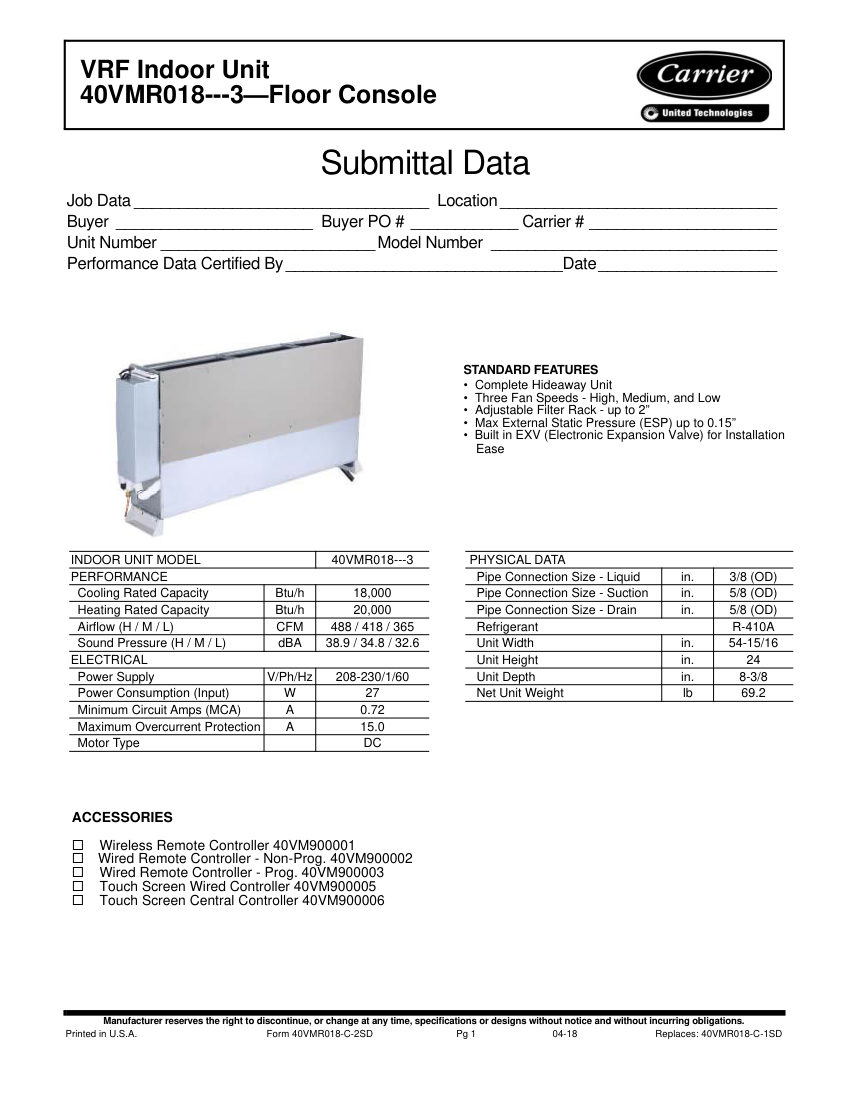

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 40VMR |
|---|---|
| Description | Carrier Floor Console (VRF Indoor Unit). Model 40VMR018---3. Cooling Rated Capacity: 18,000 Btu/h |
| Heating Rated Capacity | 20,000 Btu/h |
| Refrigerant | R-410A |
| Sound Pressure | 38.9 / 34.8 / 32.6 dBA. connectionSize: Liquid 3/8 in OD, Suction 5/8 in OD, Drain 5/8 in OD |
| Pressure Rating | Max External Static Pressure 0.15 in |
| Flow Rate | 488 / 418 / 365 CFM |
| Mounting | Recessed |
| Dimensions | 54-15/16 in W x 24 in H x 8-3/8 in D |
| Voltage | 208-230/1/60 V/Ph/Hz. |
- Official cut sheet, indexed
