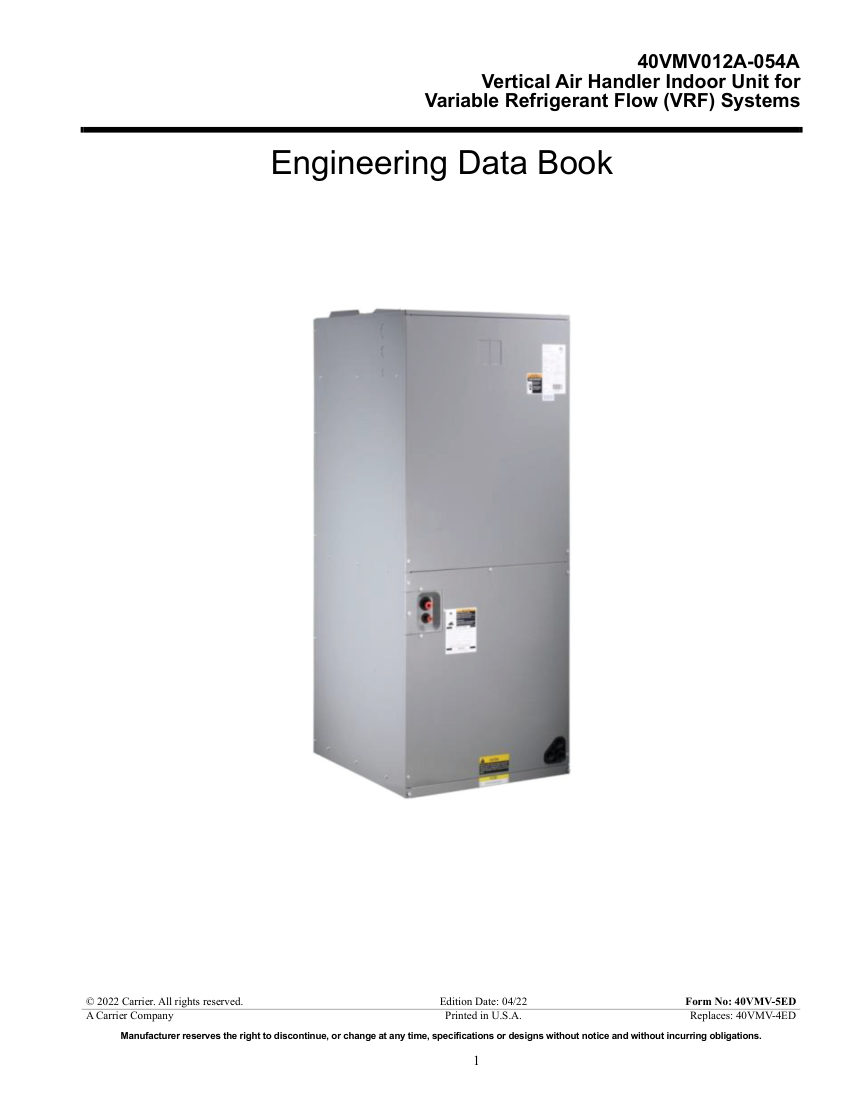

DIV 23 · HVACHVACCUT SHEET INDEXED

Carrier40VMV

Name: Carrier 40VMV
Brand: Carrier
SKU: 40VMV

Carrier Vertical Air Handler (VRF Indoor Unit). Model 40VMV012A-054A. Total Cooling Capacity: 12,000 Btu/h (012A), 18,000 Btu/h (018A)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	40VMV
Description	Carrier Vertical Air Handler (VRF Indoor Unit). Model 40VMV012A-054A. Total Cooling Capacity: 12,000 Btu/h (012A), 18,000 Btu/h (018A)
Heating Capacity	13,500 Btu/h (012A), 21,000 Btu/h (018A)
Fan Type	Centrifugal with DC Motor; Max External Static Pressure: 0.80 in. WG. material: Galvanized Steel
Connection size	1/2 in (Gas), 1/4 in (Liquid), 3/4 NPT (Condensate)
Flow Rate	400/320/320 cfm (012A), 600/510/420 cfm (018A)
Mounting	Vertical
Dimensions	46-1/2 x 19-5/8 x 21-5/8 in
Compliance	AHRI 1230.
