CarrierCarrier VRF High Wall40VMW
Carrier High Wall Air Conditioner (VRF Indoor Unit). Model 40VMW024---3. Total Cooling Capacity: 24,340 Btu/h
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carrier
- Catalog no.
- 40VMW
- Product type
- HVAC
- MasterFormat
- 23

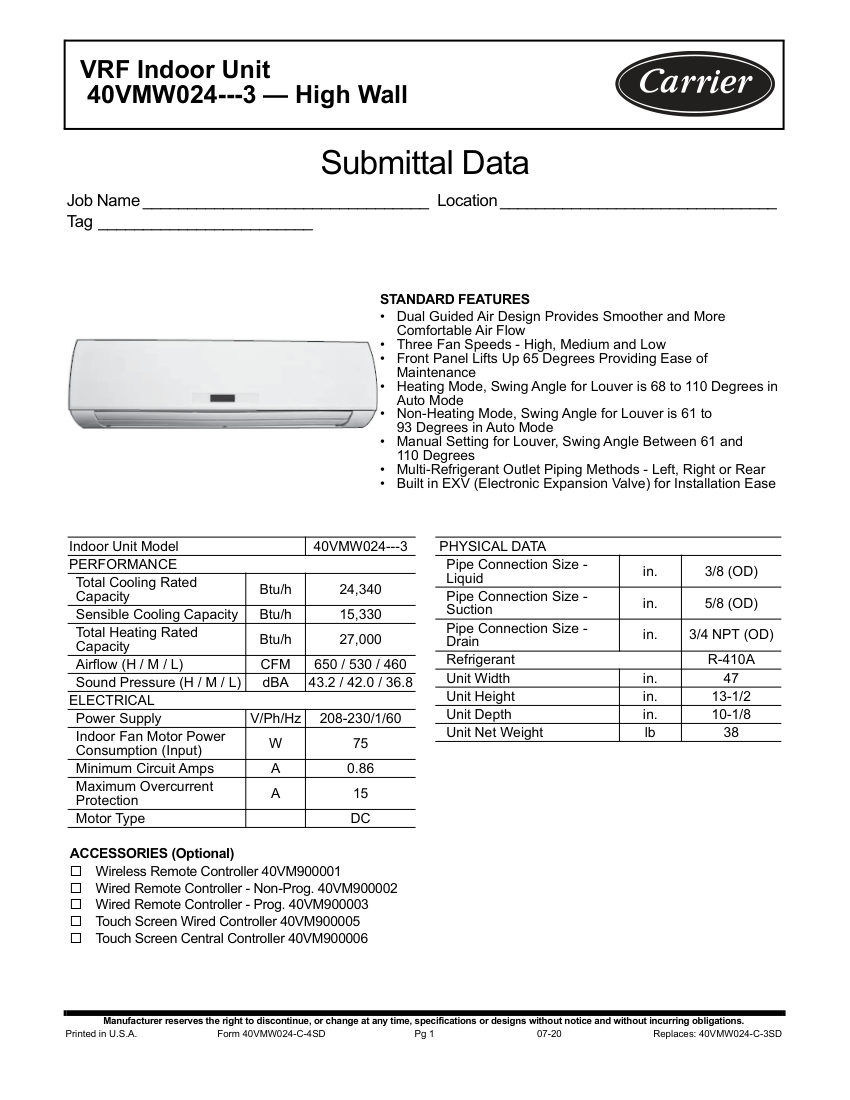

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 40VMW |
|---|---|
| Description | Carrier High Wall Air Conditioner (VRF Indoor Unit). Model 40VMW024---3. Total Cooling Capacity: 24,340 Btu/h |
| Total Heating Capacity | 27,000 Btu/h |
| Refrigerant | R-410A |
| Sound Pressure | 43.2 / 42.0 / 36.8 dBA. connectionSize: Liquid: 3/8 in OD, Suction: 5/8 in OD, Drain: 3/4 NPT |
| Flow Rate | 650 / 530 / 460 CFM |
| Mounting | High Wall |
| Dimensions | 47 x 13-1/2 x 10-1/8 in |
| Voltage | 208-230/1/60 V/Ph/Hz. |
