DIV 23 · HVACHVACCUT SHEET INDEXED

Carrier45Q

Carrier Sensible Cooling Coil (DOAS Sensible Cooling Coil). Model 45Q-202-31. Available in 2, 4, and 6 row configurations; Coil tubing is 0.50 in diameter x 0.016 in thick copper; Fins are 0.0045 in thick aluminum, 10 per inch; Casing is 20 Ga. galvanized steel with weep holes. material: Copper tubing, Aluminum fins, Galvanized steel casing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF45Q.pdfData sheet

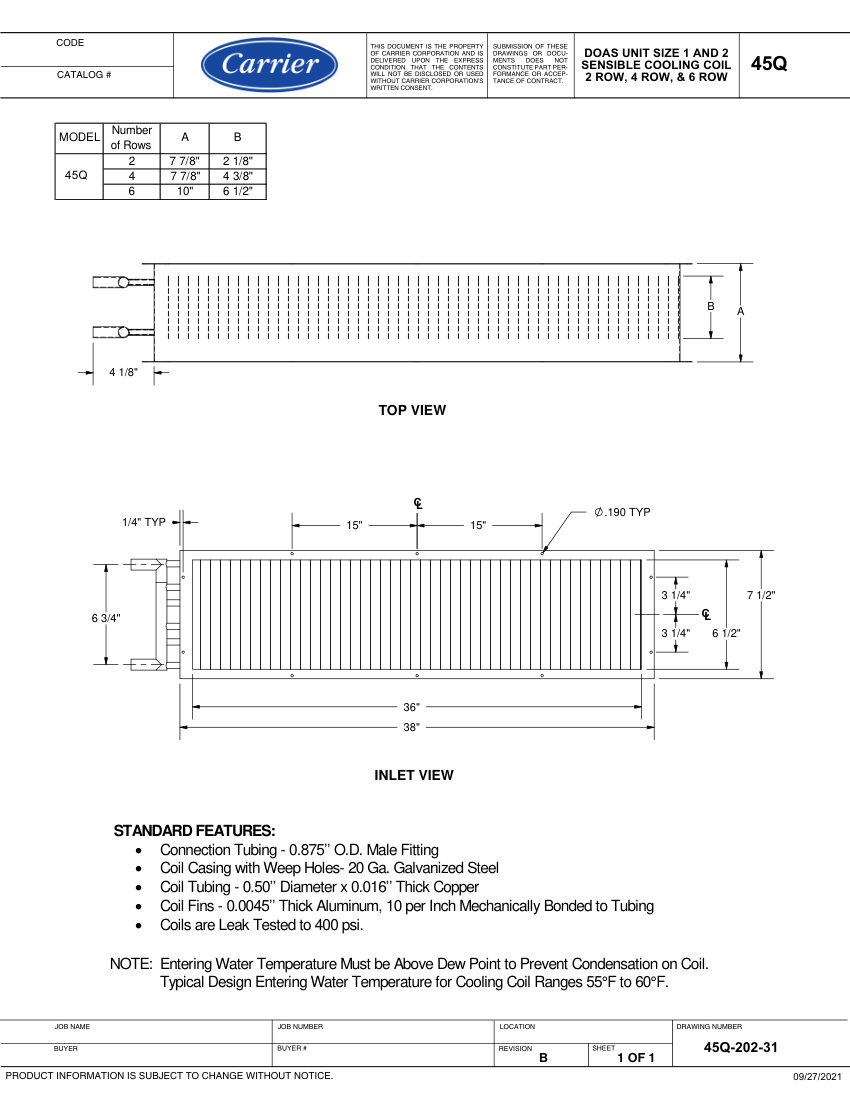

Carrier 45Q cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
45Q
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number45Q
DescriptionCarrier Sensible Cooling Coil (DOAS Sensible Cooling Coil). Model 45Q-202-31. Available in 2, 4, and 6 row configurations; Coil tubing is 0.50 in diameter x 0.016 in thick copper; Fins are 0.0045 in thick aluminum, 10 per inch; Casing is 20 Ga. galvanized steel with weep holes. material: Copper tubing, Aluminum fins, Galvanized steel casing
Connection size0.875 in O.D. Male Fitting
End connectionMale Fitting
Pressure Rating400 psi
DimensionsUnit Sizes 1 and 2; 2 Row: 7 7/8" x 2 1/8"; 4 Row: 7 7/8" x 4 3/8"; 6 Row: 10" x 6 1/2".
