Carrier45R-203-1: Hot Water Coils 1 & 2 Row. Unit Sizes 2 and 445R

Carrier Hot Water Coil (HVAC Coils). Model 45R-203-1. 1 Row and 2 Row configurations; Coil tubing is 0.50 in diameter x 0.016 in thick copper; Fins are 0.0045 in thick aluminum, 10 per inch; Casing is 20 Ga. galvanized steel. material: Copper tubing, Aluminum fins, Galvanized steel casing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF45R.pdfData sheet

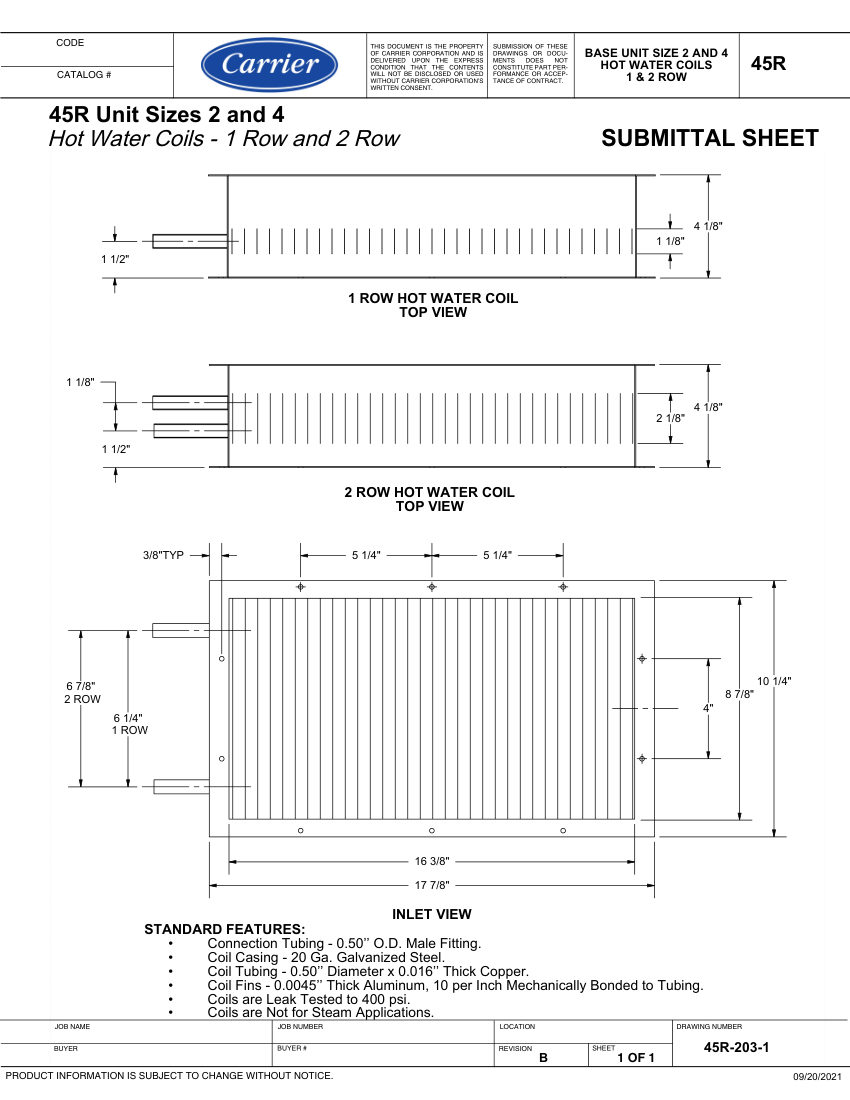

Carrier 45R cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
45R
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog number45R
DescriptionCarrier Hot Water Coil (HVAC Coils). Model 45R-203-1. 1 Row and 2 Row configurations; Coil tubing is 0.50 in diameter x 0.016 in thick copper; Fins are 0.0045 in thick aluminum, 10 per inch; Casing is 20 Ga. galvanized steel. material: Copper tubing, Aluminum fins, Galvanized steel casing
Connection size0.50 in O.D. Male Fitting
End connectionMale Fitting
Pressure Rating400 psi
Dimensions1 Row: 16 3/8 in x 6 1/4 in; 2 Row: 17 7/8 in x 6 7/8 in.
