DIV 23 · HVACHVACCUT SHEET INDEXED
CarrierMCY7
Carrier VRF Heat Pump Outdoor Unit (VRF). Model MCY-MAP0487HS-UL. Nominal Cooling Capacity: 48,000 Btu/h
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carrier
- Catalog no.
- MCY7
- Product type
- HVAC
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | MCY7 |
|---|---|
| Description | Carrier VRF Heat Pump Outdoor Unit (VRF). Model MCY-MAP0487HS-UL. Nominal Cooling Capacity: 48,000 Btu/h |
| Nominal Heating Capacity | 54,000 Btu/h; SEER2 (Ducted FCUs): 17.20 Btu/Wh; HSPF2 (Ducted FCUs): 9.50. connectionSize: Liquid: 3/8 in (Flare), Gas: 5/8 in (Flare) |
| End connection | Flare |
| Flow Rate | 4690 CFM |
| Finish | Munsell 1Y8.5/0.5 |
| Mounting | Bolt holes (A and B legs) |
| Dimensions | 39.8 in W x 61.0 in H x 14.6 in D. |

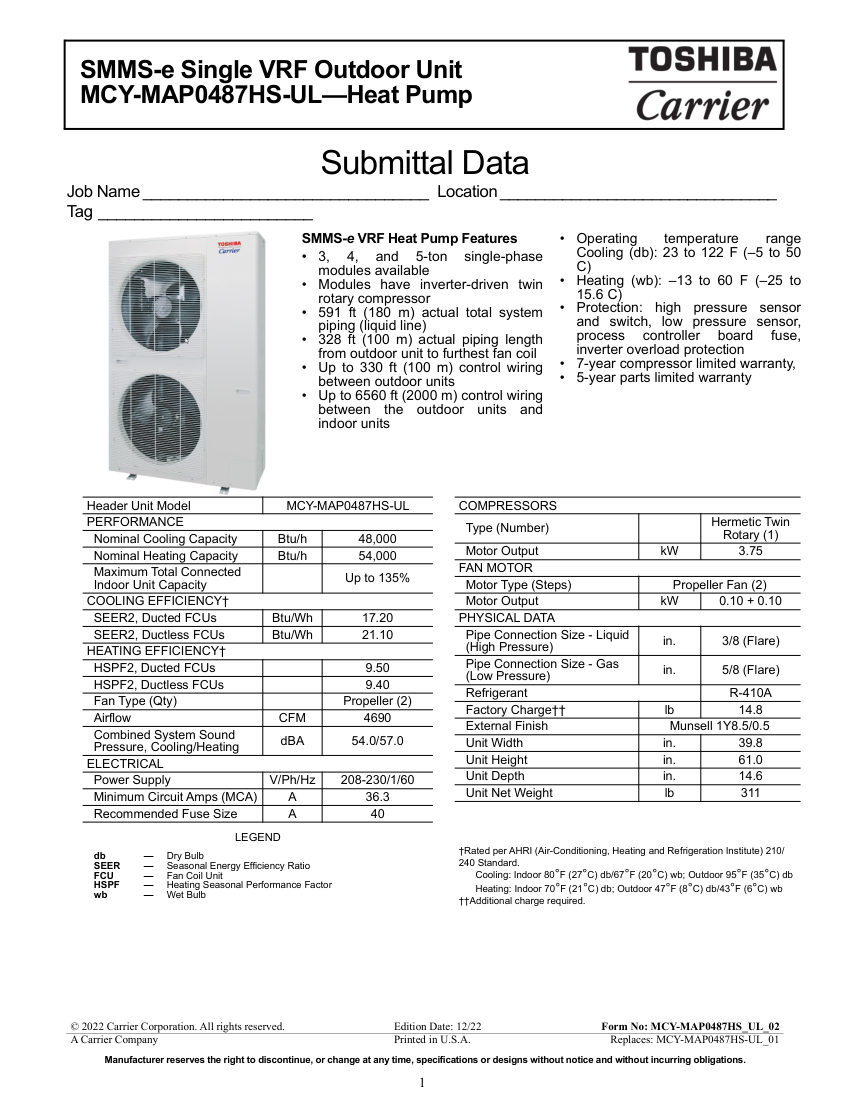

- Official cut sheet, indexed
