DIV 23 · HVACHVACCUT SHEET INDEXED
CarrierToshiba Carrier Concealed Duct Indoor Unit (MMD6B)MMD6B
Carrier Concealed Duct Air Handler (VRF Indoor Unit). Model MMD-AP0426BHPUL. Cooling Capacity: 42,000 Btu/h
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Carrier
- Catalog no.
- MMD6B
- Product type
- HVAC
- MasterFormat
- 23

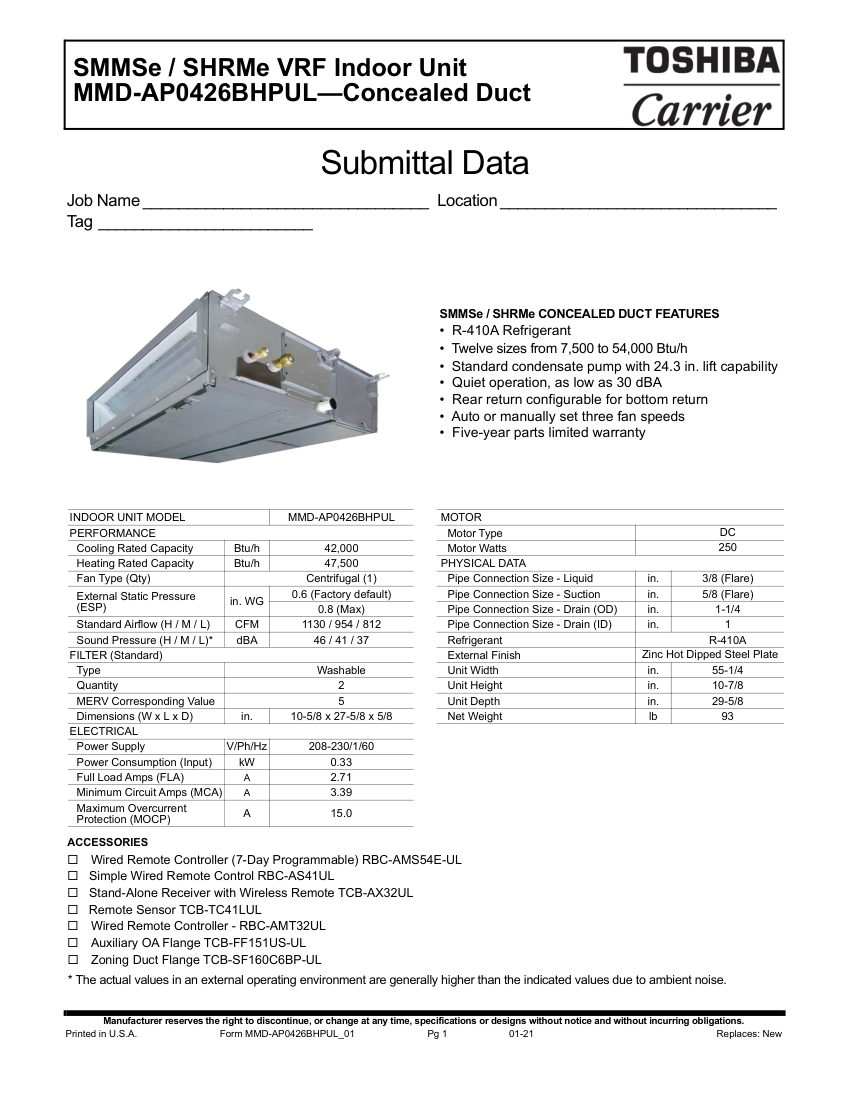

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | MMD6B |
|---|---|
| Description | Carrier Concealed Duct Air Handler (VRF Indoor Unit). Model MMD-AP0426BHPUL. Cooling Capacity: 42,000 Btu/h |
| Heating Capacity | 47,500 Btu/h |
| Refrigerant | R-410A |
| Sound Pressure | 46 / 41 / 37 dBA (H/M/L). material: Zinc Hot Dipped Steel Plate |
| Connection size | Liquid 3/8 in (Flare), Suction 5/8 in (Flare), Drain 1-1/4 in OD |
| End connection | Flare |
| Pressure Rating | External Static Pressure 0.6 in. WG (Factory default), 0.8 in. WG (Max) |
| Flow Rate | 1130 / 954 / 812 CFM (H/M/L) |
| Finish | Zinc Hot Dipped Steel Plate. |
