CarrierMMD6H

Carrier High Static Pressure Duct Type FCU (VRF Indoor Unit). Model MMD-AP0246HPUL, MMD-AP0306HPUL, MMD-AP0366HPUL, MMD-AP0486HPUL, MMD-AP0546HPUL. Cooling capacity range: 24.0 to 54.0 kBtu/h

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFMMD6H.pdfData sheet

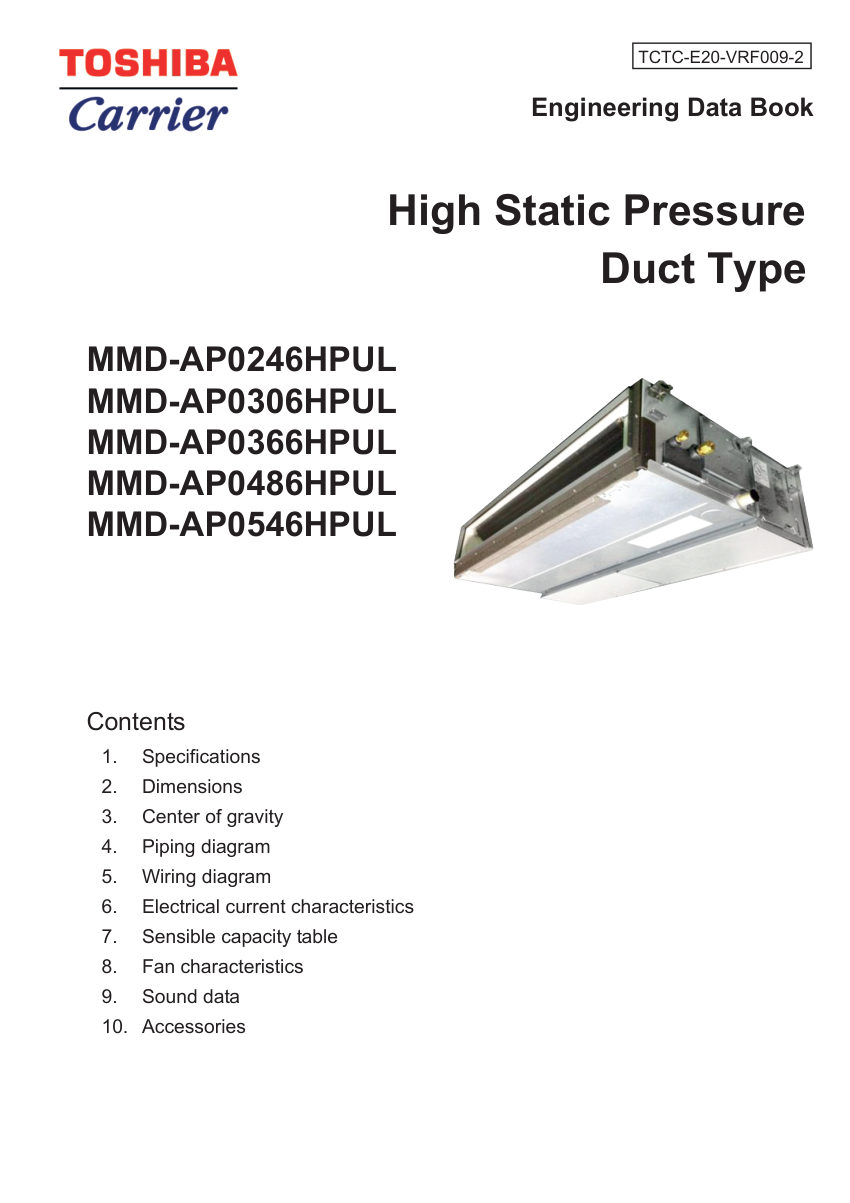

Carrier MMD6H cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
MMD6H
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberMMD6H
DescriptionCarrier High Static Pressure Duct Type FCU (VRF Indoor Unit). Model MMD-AP0246HPUL, MMD-AP0306HPUL, MMD-AP0366HPUL, MMD-AP0486HPUL, MMD-AP0546HPUL. Cooling capacity range: 24.0 to 54.0 kBtu/h
Heating capacity range27.0 to 60.0 kBtu/h
Fan typeCentrifugal
Drain pipeVP25 (1-1/4 in OD). material: Finned tube heat exchanger, Polyethylene foam insulation
Connection sizeGas 5/8 in, Liquid 3/8 in
End connectionFlare
Pressure RatingExternal static pressure 0.8" - 1.0" in WG
Flow Rate471 - 1413 cfm (depending on model and speed)
MountingDucted.
