DIV 23 · HVACHVACCUT SHEET INDEXED

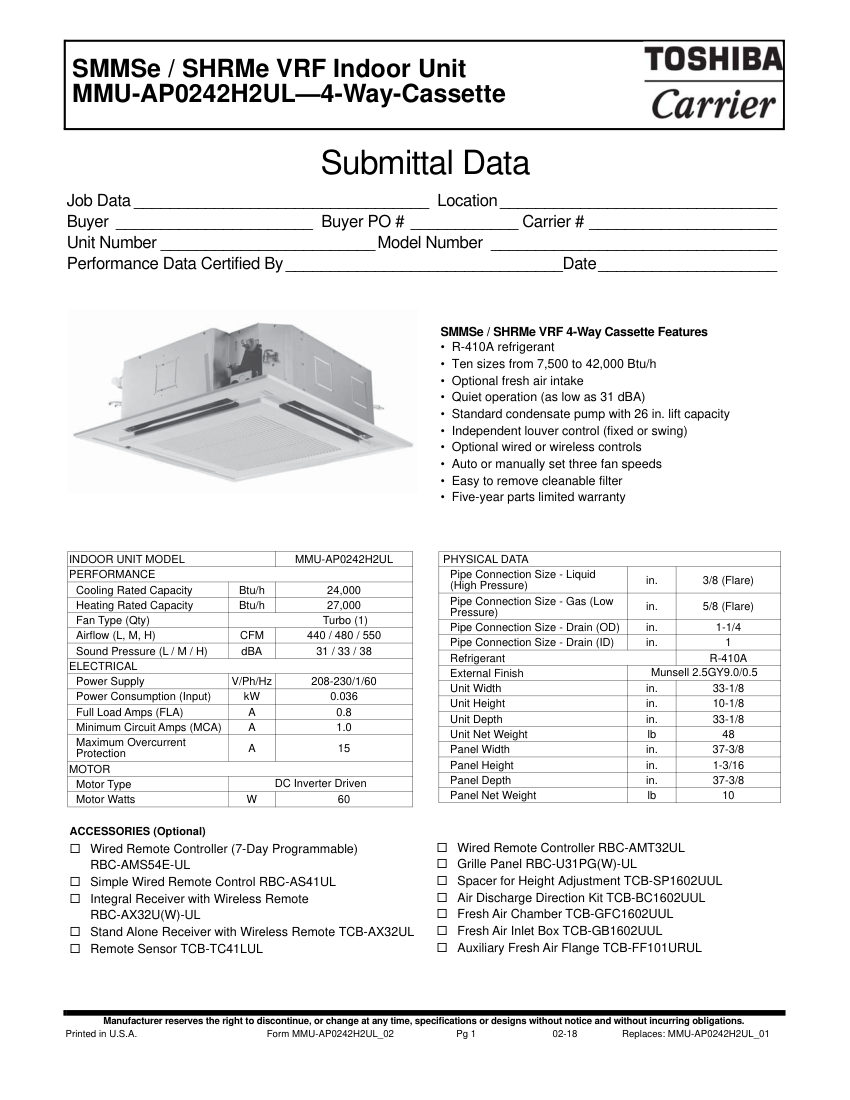

CarrierToshiba Carrier VRF 4-Way Cassette Indoor UnitMMU2

Name: Carrier Toshiba Carrier VRF 4-Way Cassette Indoor Unit (MMU2)
Brand: Carrier
SKU: MMU2

Carrier 4-Way Cassette Indoor Unit (Carrier Toshiba Carrier VRF). Model MMU-AP0242H2UL. Cooling Rated Capacity: 24,000 Btu/h

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	MMU2
Description	Carrier 4-Way Cassette Indoor Unit (Carrier Toshiba Carrier VRF). Model MMU-AP0242H2UL. Cooling Rated Capacity: 24,000 Btu/h
Heating Rated Capacity	27,000 Btu/h
Refrigerant	R-410A
Sound Pressure	31 / 33 / 38 dBA. connectionSize: Liquid: 3/8 in (Flare), Gas: 5/8 in (Flare), Drain OD: 1-1/4 in, Drain ID: 1 in
End connection	Flare
Flow Rate	440 / 480 / 550 CFM
Finish	Munsell 2.5GY9.0/0.5
Mounting	Cassette
Dimensions	33-1/8 in W x 10-1/8 in H x 33-1/8 in D.
