DIV 23 · HVACHVACCUT SHEET INDEXED

CarrierMMYF-1P

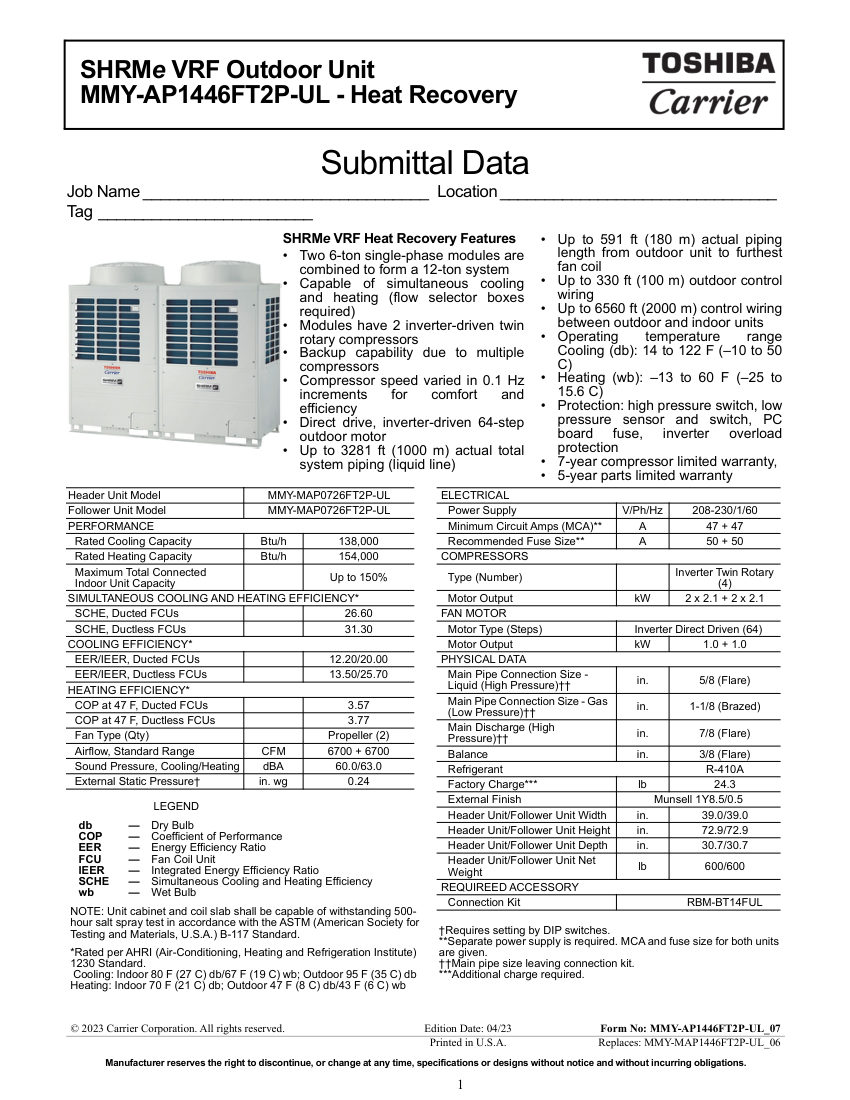

Name: Carrier MMYF-1P
Brand: Carrier
SKU: MMYF-1P

Carrier Heat Recovery VRF Outdoor Unit (VRF Outdoor Unit). Model MMY-AP1446FT2P-UL. 12 Ton Capacity (138,000 Btu/h Cooling, 154,000 Btu/h Heating)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	MMYF-1P
Description	Carrier Heat Recovery VRF Outdoor Unit (VRF Outdoor Unit). Model MMY-AP1446FT2P-UL. 12 Ton Capacity (138,000 Btu/h Cooling, 154,000 Btu/h Heating)
Refrigerant	R-410A
Compressor	4 Inverter Twin Rotary
Max Piping Length	591 ft (180 m). connectionSize: Liquid: 5/8 in (Flare), Gas: 1-1/8 in (Brazed), Discharge: 7/8 in (Flare), Balance: 3/8 in (Flare)
End connection	Flare/Brazed
Flow Rate	6700 + 6700 CFM
Finish	Munsell 1Y8.5/0.5
Dimensions	W: 39.0 in, H: 72.9 in, D: 30.7 in
Voltage	208-230/1/60.
