CarrierNSB-10K

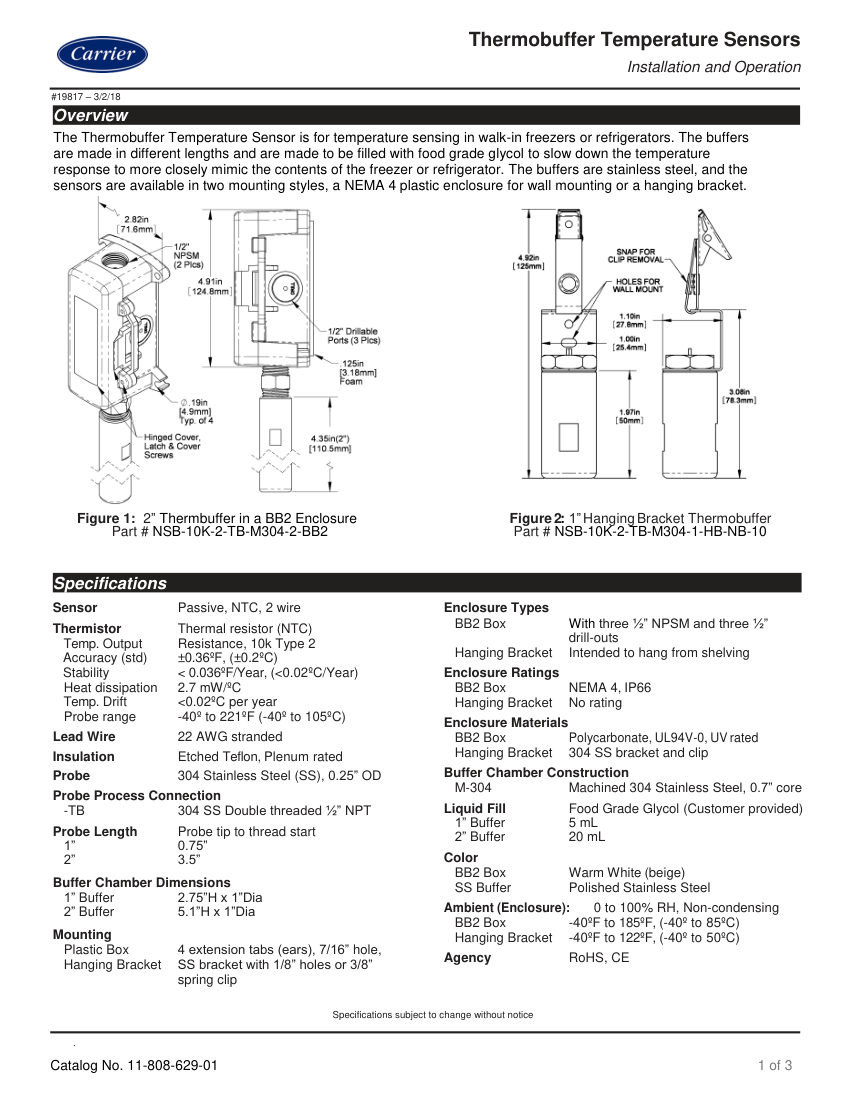

Name: Carrier NSB-10K
Brand: Carrier
SKU: NSB-10K

Carrier Thermobuffer Temperature Sensor (Temperature Sensors). Model NSB Series. NTC 10k Type 2 thermistor

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	NSB-10K
Description	Carrier Thermobuffer Temperature Sensor (Temperature Sensors). Model NSB Series. NTC 10k Type 2 thermistor
Probe range	-40°F to 221°F (-40°C to 105°C)
Accuracy	±0.36°F (±0.2°C)
Buffer fill	Food grade glycol (5mL for 1", 20mL for 2"). material: 304 Stainless Steel probe and buffer, Polycarbonate enclosure
Connection size	1/2" NPT
End connection	Double threaded 1/2" NPT
Finish	Polished Stainless Steel
Mounting	Wall mounting (BB2 Box) or Hanging Bracket
Dimensions	1" Buffer: 2.75"H x 1"Dia; 2" Buffer: 5.1"H x 1"Dia.

Also cataloged as: NSB-10K-2-TB-M304-2-BB2, NSB-10K-2-TB-M304-1-HB-NB-10, NSB-10K-1, NSB-10K-2, NSB-10K-TB, NSB-10K-M304, NSB-10K-BB2, NSB-10K-HB
