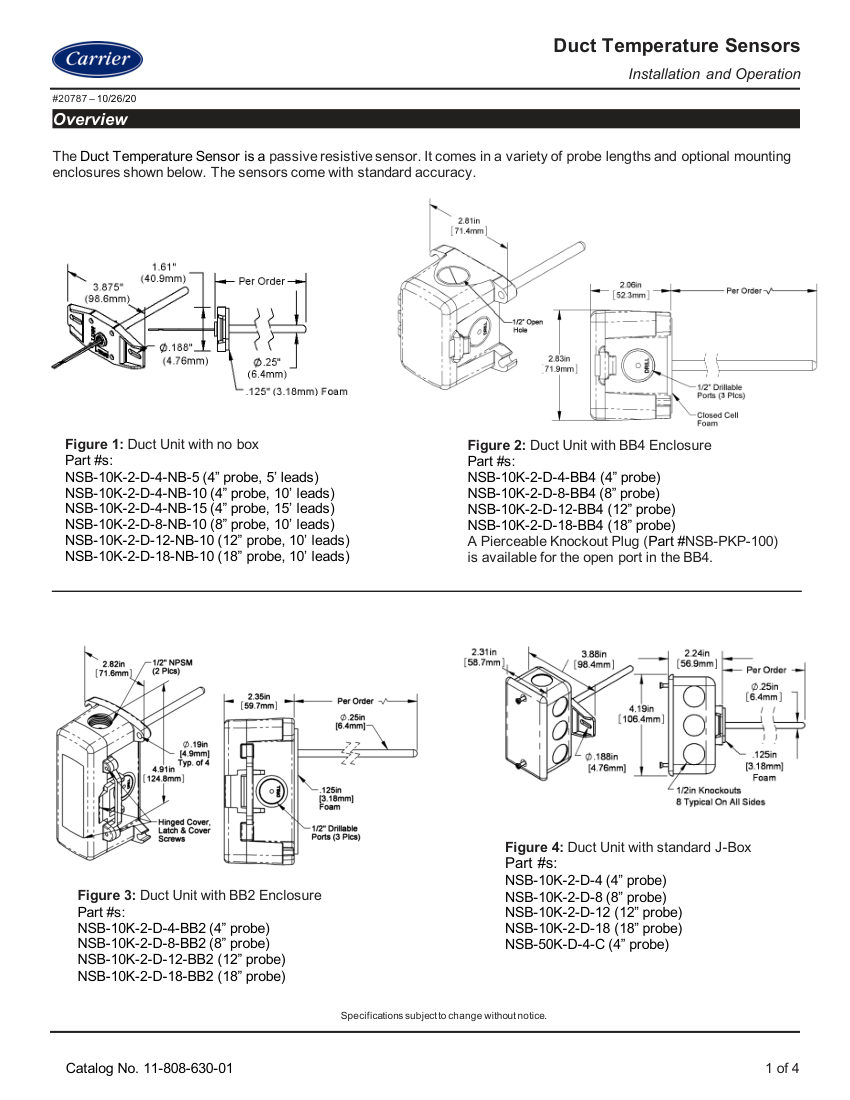

CarrierNon-Communicating Sensors NSB Series: Duct Temperature SensorsNSB-10K-2-D

Name: Carrier Non-Communicating Sensors NSB Series: Duct Temperature Sensors (NSB-10K-2-D)
Brand: Carrier
SKU: NSB-10K-2-D

Carrier Duct Temperature Sensor (Carrier Non-Communicating Sensors NSB Series). Model NSB-10K-2-D. Passive NTC 2-wire sensor

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	NSB-10K-2-D
Description	Carrier Duct Temperature Sensor (Carrier Non-Communicating Sensors NSB Series). Model NSB-10K-2-D. Passive NTC 2-wire sensor
Temperature range	-40 to 221°F (-40 to 105°C)
Accuracy	±0.36°F (±0.2°C)
Probe material	304 Stainless steel, 0.25" OD. material: 304 Stainless steel probe, Nylon 66 or Polycarbonate enclosure
Connection size	22AWG stranded lead wire
End connection	2 wire passive NTC
Mounting	Extension tabs with 3/16" holes
Dimensions	Probe lengths: 4", 8", 12", 18"
Compliance	RoHS, NEMA 1/4, IP66, UL94H-B/V-0.
