DIV 23 · HVACHVACCUT SHEET INDEXED

CarrierNSB-10K-2-LPW

Carrier Low Profile Button Temperature Sensor (Carrier NSB Series). Model NSB-10K-2-LPW, NSB-50K-LPW. Sensor Type: Passive Thermistor (10K or 50K ohms @ 77°F)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNSB-10K-2-LPW.pdfData sheet

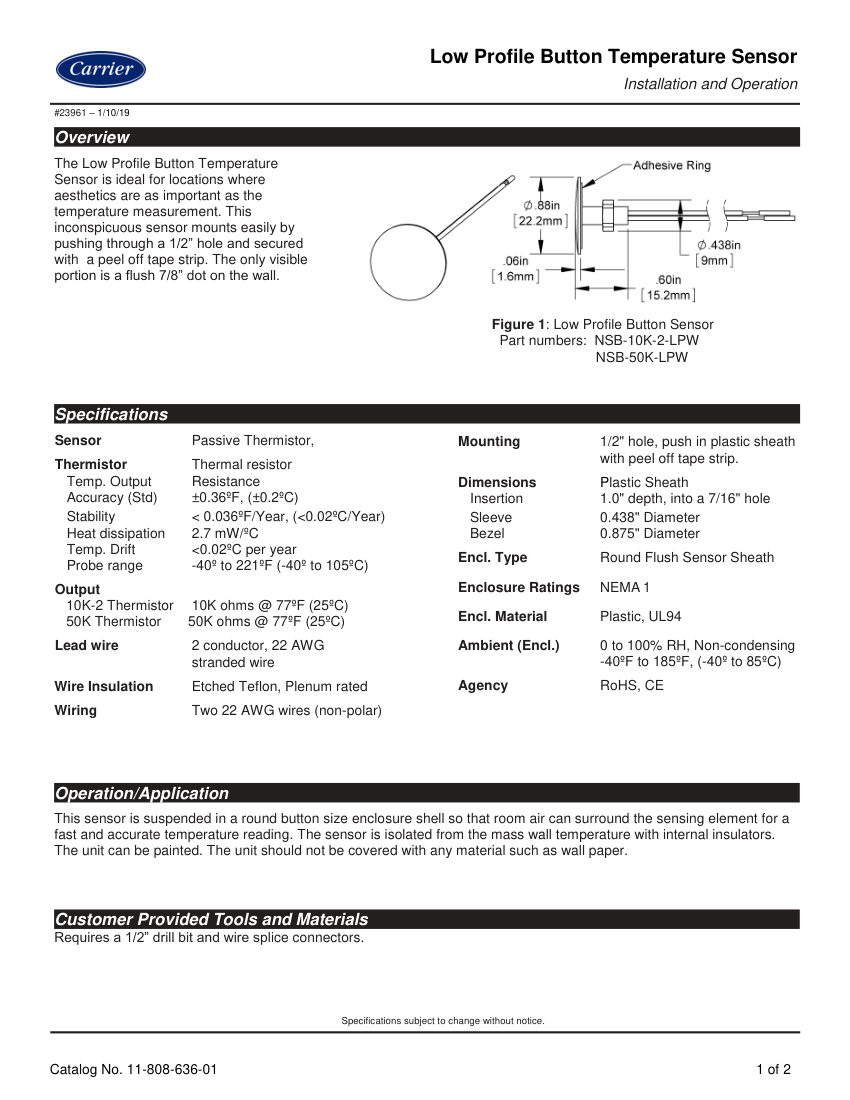

Carrier NSB-10K-2-LPW cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
NSB-10K-2-LPW
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNSB-10K-2-LPW
DescriptionCarrier Low Profile Button Temperature Sensor (Carrier NSB Series). Model NSB-10K-2-LPW, NSB-50K-LPW. Sensor Type: Passive Thermistor (10K or 50K ohms @ 77°F)
Temperature Range-40°F to 221°F (-40°C to 105°C)
Accuracy±0.36°F (±0.2°C)
Stability< 0.036°F/Year (<0.02°C/Year). material: Plastic, UL94
Connection size1/2" hole
End connection2 conductor, 22 AWG stranded wire
FinishFlush 7/8" dot
MountingPush in plastic sheath with peel off tape strip
DimensionsBezel 0.875" Diameter, Sleeve 0.438" Diameter, Insertion 1.0" depth.

Also cataloged as: NSB-50K-LPW, NSB-10K-2, NSB-50K
