DIV 23 · HVACHVACCUT SHEET INDEXED

CarrierNSB-ZPS-ACC20

Carrier Low Profile Pressure Pickup Port (Pressure Sensor). Model NSB-ZPS-ACC20. 5-micron built-in surge damper filter; Ambient temperature range -40°F to 185°F; Ambient humidity 0 to 100% RH non-condensing; Flush 7/8" visible dot on wall. material: Plastic, UL94V-0

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNSB-ZPS-ACC20.pdfData sheet

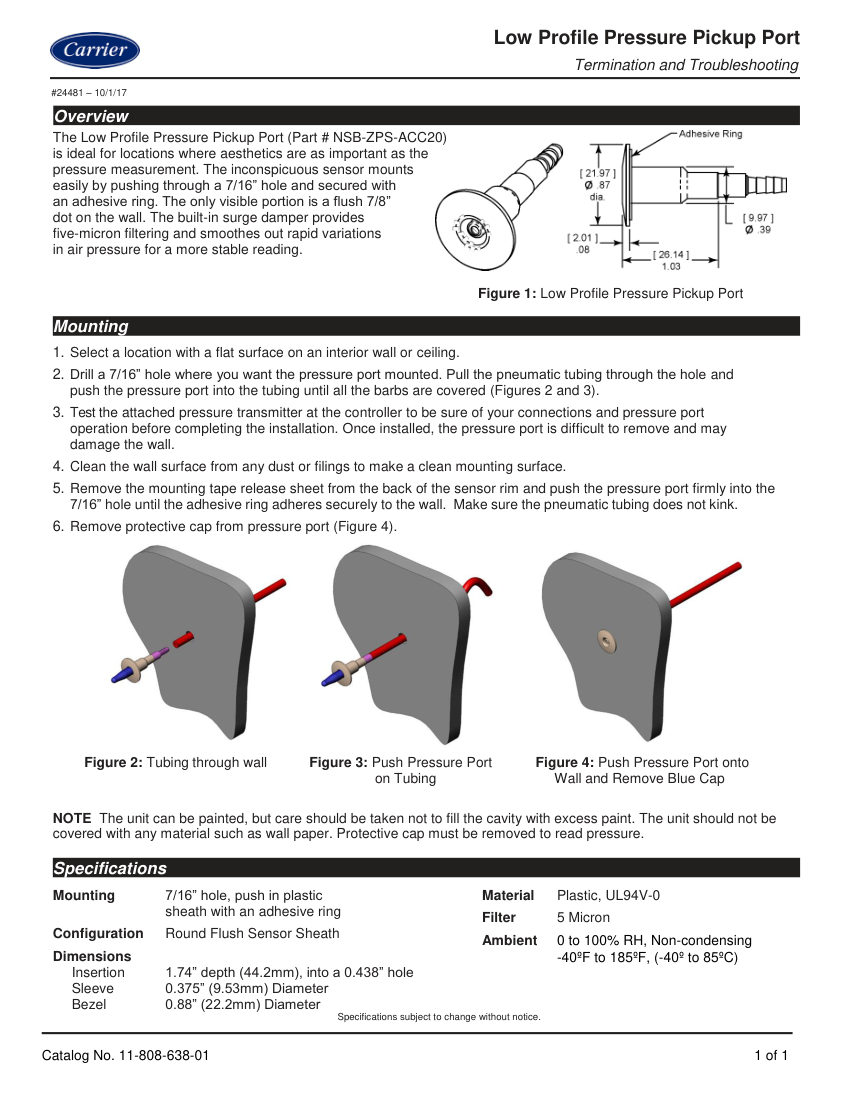

Carrier NSB-ZPS-ACC20 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
NSB-ZPS-ACC20
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNSB-ZPS-ACC20
DescriptionCarrier Low Profile Pressure Pickup Port (Pressure Sensor). Model NSB-ZPS-ACC20. 5-micron built-in surge damper filter; Ambient temperature range -40°F to 185°F; Ambient humidity 0 to 100% RH non-condensing; Flush 7/8" visible dot on wall. material: Plastic, UL94V-0
Connection size7/16" hole
End connectionPush in plastic sheath with adhesive ring
FinishPaintable
MountingPush in with adhesive ring
DimensionsInsertion 1.74" depth, Sleeve 0.375" Diameter, Bezel 0.88" Diameter.
