Carrieri-Vu Open VVT Bypass II ControllerOPN-VVTBP-02

Carrier VVT Bypass II Controller (Carrier i-Vu Building Automation System). Model OPN-VVTBP-02. Separable brushless DC actuator with 45 inch-pounds (5Nm) torque; Integral precision low flow AWM series pressure sensor; Native BACnet MS/TP or ARCNET communications; 1 analog input (DAT 10k thermistor) and 1 analog output (0-10VDC). connectionSize: 3/16 in. (4.75 mm) I.D. tubing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFOPN-VVTBP-02.pdfData sheet

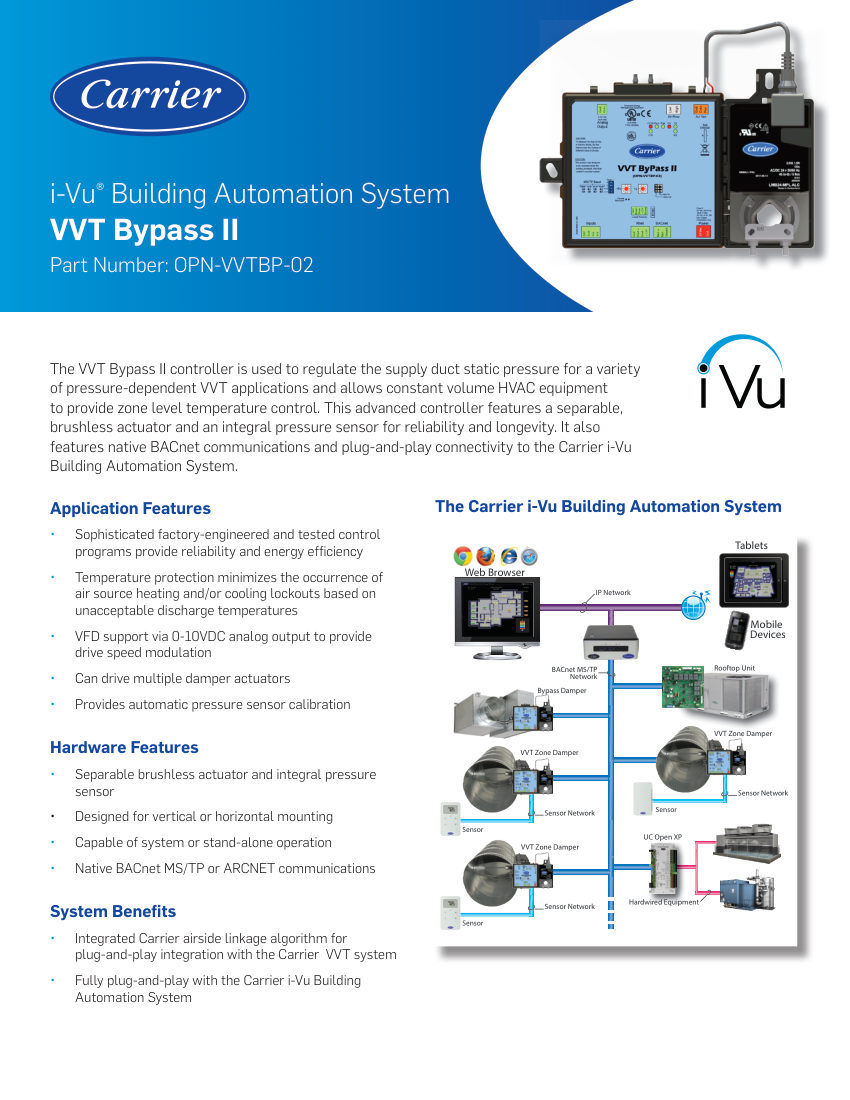

Carrier OPN-VVTBP-02 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
OPN-VVTBP-02
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberOPN-VVTBP-02
DescriptionCarrier VVT Bypass II Controller (Carrier i-Vu Building Automation System). Model OPN-VVTBP-02. Separable brushless DC actuator with 45 inch-pounds (5Nm) torque; Integral precision low flow AWM series pressure sensor; Native BACnet MS/TP or ARCNET communications; 1 analog input (DAT 10k thermistor) and 1 analog output (0-10VDC). connectionSize: 3/16 in. (4.75 mm) I.D. tubing
End connectionBarbed tapered airflow connections
Pressure Rating0–2 in. H2O
MountingVertical or horizontal
ComplianceUL Listed, FCC, CE, RoHS, ICES-003
Voltage0-10VDC analog output.
