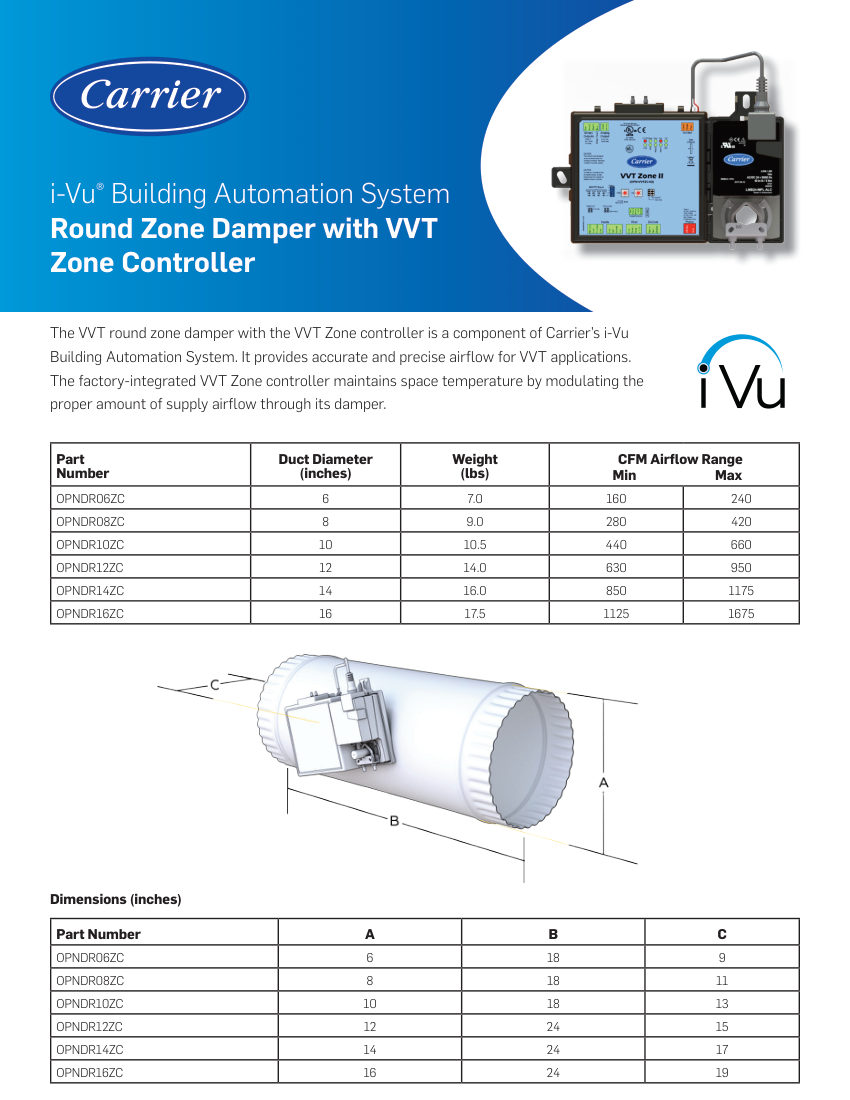

Carrieri-Vu Open Round Zone Damper with Integrated ControllerOPNDR06ZC

Name: Carrier i-Vu Open Round Zone Damper with Integrated Controller (OPNDR06ZC)
Brand: Carrier
SKU: OPNDR06ZC

Carrier Round Zone Damper with Integrated Controller (i-Vu Building Automation System). Model OPNDR06ZC-OPNDR16ZC. Torque rating: 45 in. lb.

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	OPNDR06ZC
Description	Carrier Round Zone Damper with Integrated Controller (i-Vu Building Automation System). Model OPNDR06ZC-OPNDR16ZC. Torque rating: 45 in. lb.
Degree of rotation	30 - 90 degrees
Communications	BACnet MS/TP or ARCNET
Power consumption	14 VA. material: 24 Ga. Spiral Metal Duct Housing, 20 Ga. Elliptical Damper Blade
Connection size	6, 8, 10, 12, 14, 16 inches
Pressure Rating	1 in. wg static pressure
Flow Rate	160-1675 CFM
Dimensions	A: 6-16 in, B: 18-24 in, C: 9-19 in
Compliance	UL Listed, FCC, CE, RoHS, ASHRAE 62.

Also cataloged as: OPNDR08ZC, OPNDR10ZC, OPNDR12ZC, OPNDR14ZC, OPNDR16ZC, OPNDR-06, OPNDR-08, OPNDR-10, OPNDR-12, OPNDR-14, OPNDR-16
