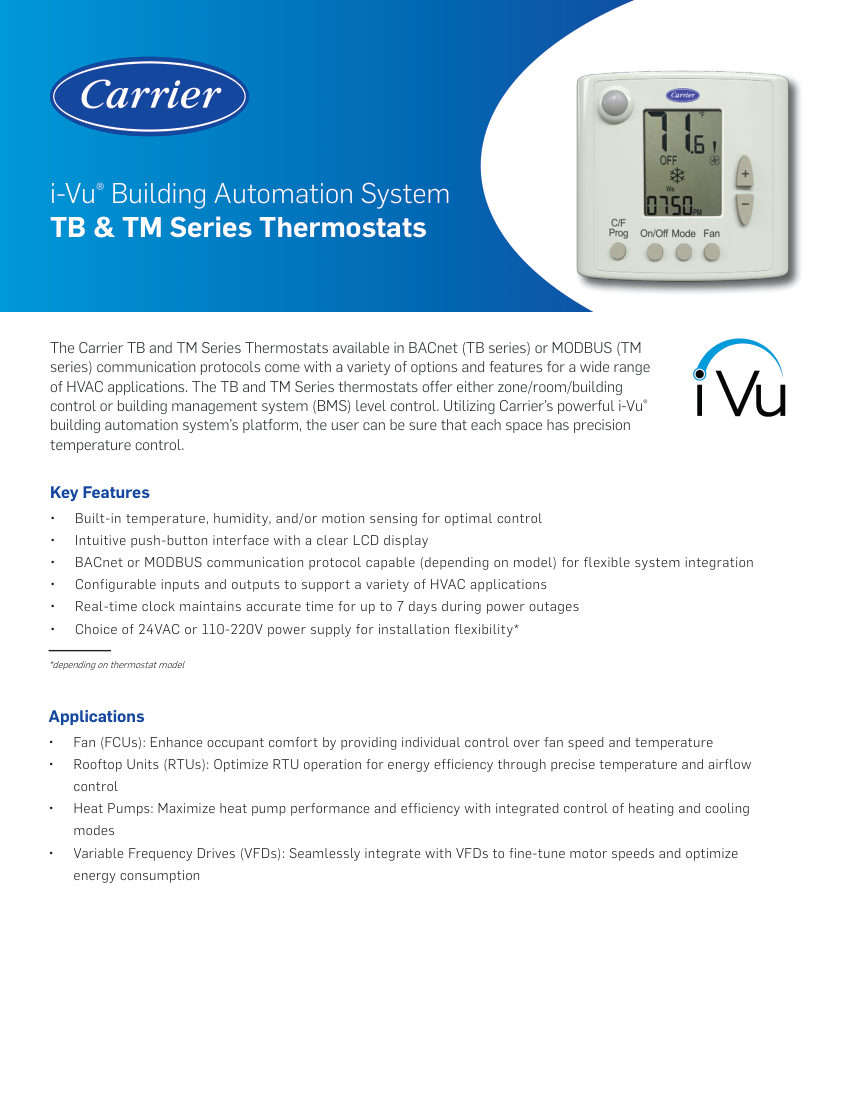

CarrierTB-24-C

Name: Carrier TB-24-C
Brand: Carrier
SKU: TB-24-C

Carrier Thermostat (Carrier i-Vu Building Automation System). Model TB & TM Series. Communication: BACnet MS/TP (TB Series) or Modbus RTU (TM Series)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	TB-24-C
Description	Carrier Thermostat (Carrier i-Vu Building Automation System). Model TB & TM Series. Communication: BACnet MS/TP (TB Series) or Modbus RTU (TM Series)
Temperature Range	41-95°F (5-35°C) with ±1°F accuracy
Humidity Range	10-90% with ±3% accuracy (select models)
Motion Sensing	PIR quad omnidirectional, 16.4 ft (5 m) distance. material: Fire-retardant ABS plastic (UL94V-0)
Mounting	Standard wall box
Dimensions	5.1250 x 3.2500 x 0.6999 in (130.175 x 82.55 x 17.77 mm)
Compliance	FCC CFR47, ICC ICES-003, CE Mark LVD 2014/35/EU
Voltage	24 VAC or 110-220 VAC.
