DIV 23 · HVACHVACCUT SHEET INDEXED

CarrierZS Duct SensorsZS-DUCT

Carrier Duct Sensor (Carrier i-Vu Building Automation System). Model ZS Duct Sensors (ZSD/ZSA series). Temperature Range: 20° to 120° F (-5° to 50° C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFZS-DUCT.pdfData sheet

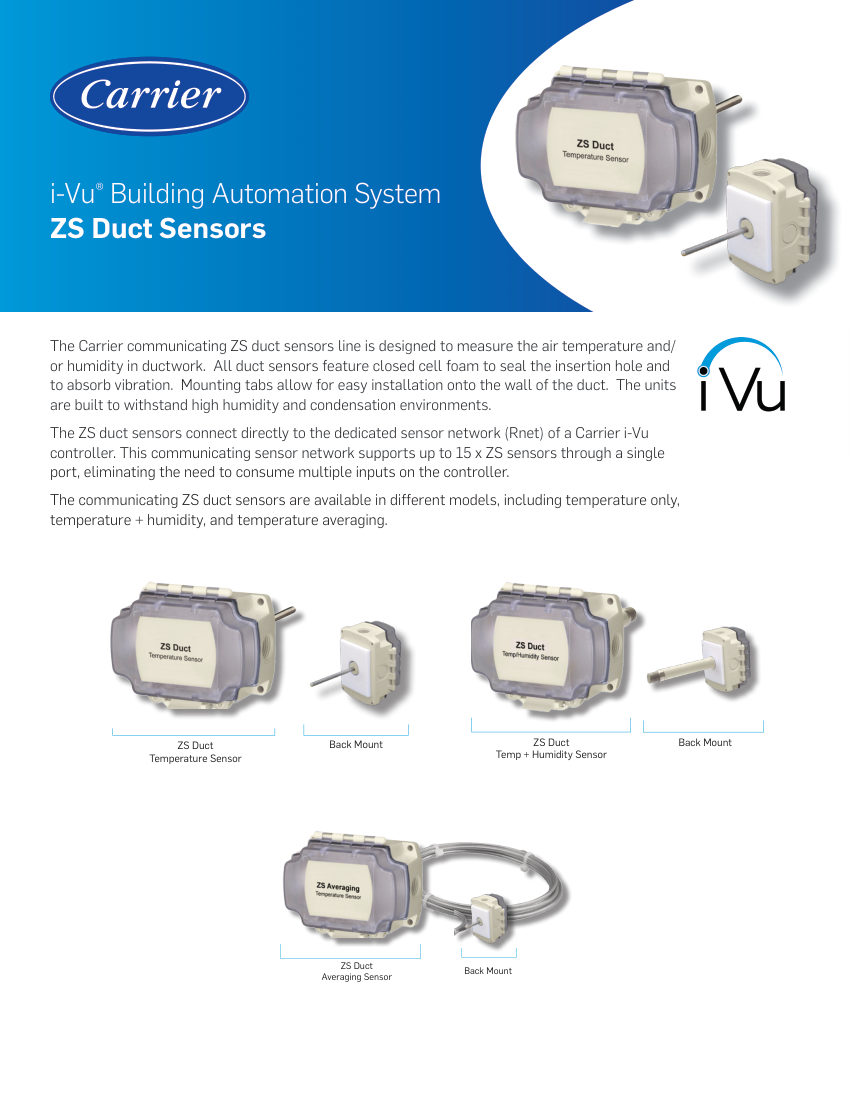

Carrier ZS-DUCT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Carrier
Catalog no.
ZS-DUCT
Product type
HVAC
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberZS-DUCT
DescriptionCarrier Duct Sensor (Carrier i-Vu Building Automation System). Model ZS Duct Sensors (ZSD/ZSA series). Temperature Range: 20° to 120° F (-5° to 50° C)
Humidity Range10% to 90%
Temperature Accuracy±0.36° F (0.2° C) for sensing element
Communication Speed115 kbps. material: Polycarbonate (UL94V-0), 304 SS, ABS, Aluminum
Connection sizeRnet (4-conductor)
End connectionDuct mount with #8 sheet metal screws
FinishUV rated
MountingBack Mount or Bottom Mount
Dimensions5 in. x 4.15 in. x 2.5 in. (Enclosure).
